Field Area Counter Clear Calibration

Press diagnostic button. dIA will be displayed.

OUO6075,0003AD0 -19-07OCT04-1/4

Press calibration button. CAL and ACF will be displayed.

OUO6075,0003AD0 -19-07OCT04-2/4

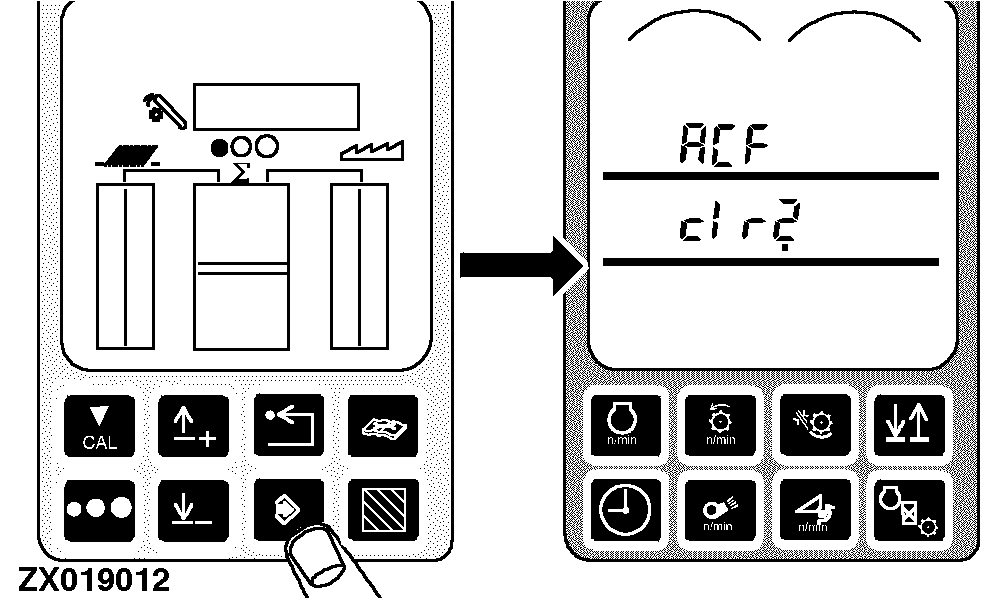

Press enter button. ACF and clr? will be displayed.

OUO6075,0003AD0 -19-07OCT04-3/4

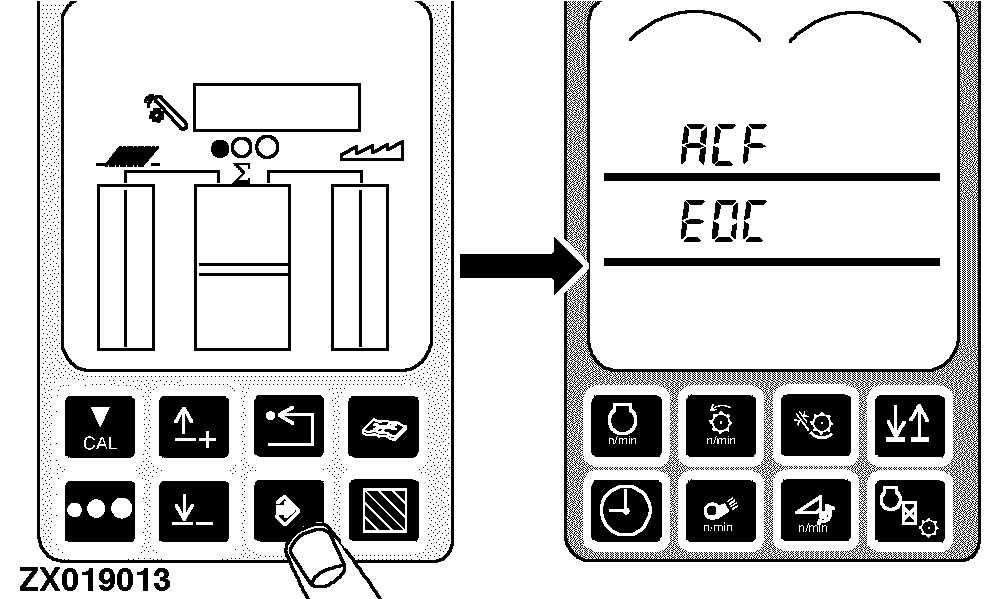

Press enter button to erase area counter value. EOC will be displayed for two seconds.

Press back arrow button to return to normal operation.

OUO6075,0003AD0 -19-07OCT04-4/4
