Chopper Vane Angle Calibration
Chopper Vane Angle calibration must be performed when electrical motor is replaced.
Prepare machine for calibration:
-
Turn key switch to "RUN" position
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-1/10
|
|
Press diagnostic button. dIA will be displayed.
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-2/10
|
|

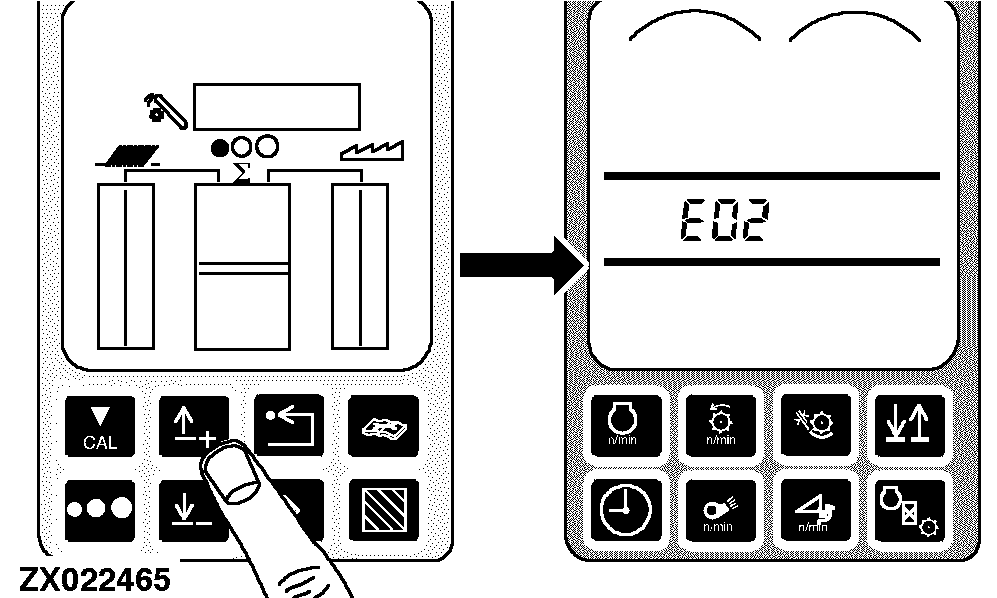

Press up or down arrow button until E02 is displayed.
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-3/10
|
|

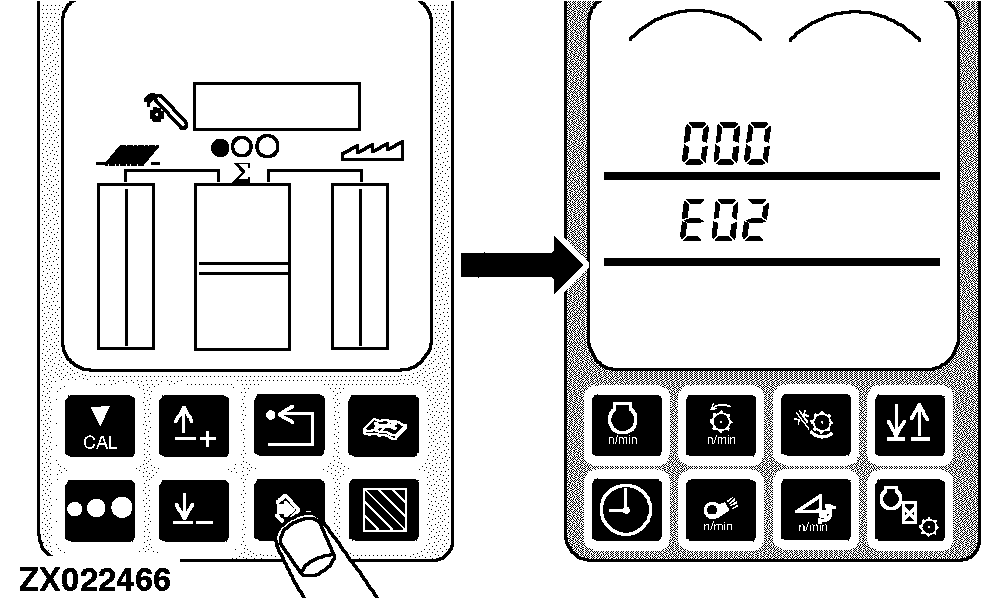

Press enter button to access E02 diagnostic mode. 000 and E02 will be displayed.
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-4/10
|
|

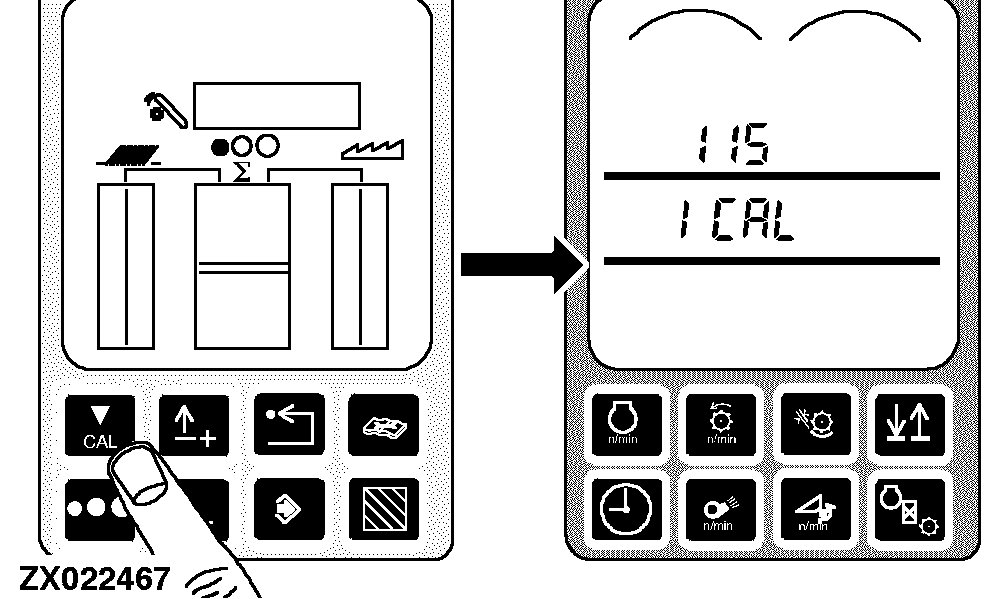

Press calibration button until 115 and ICAL is displayed.
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-5/10
|
|

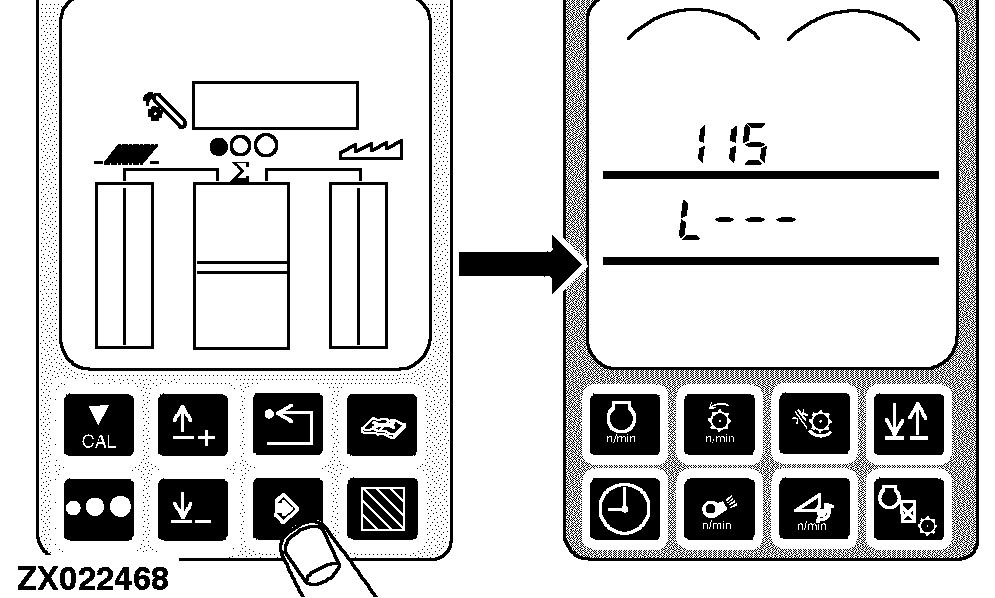

Press enter switch to access chopper vane calibration mode. 115 and L - - - should appear on triple display tachometer.
Press chopper vane adjust switch (A) to left-hand side to fully orientate vanes to the left.
A-Chopper Vane Adjust Switch
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-6/10
|
|

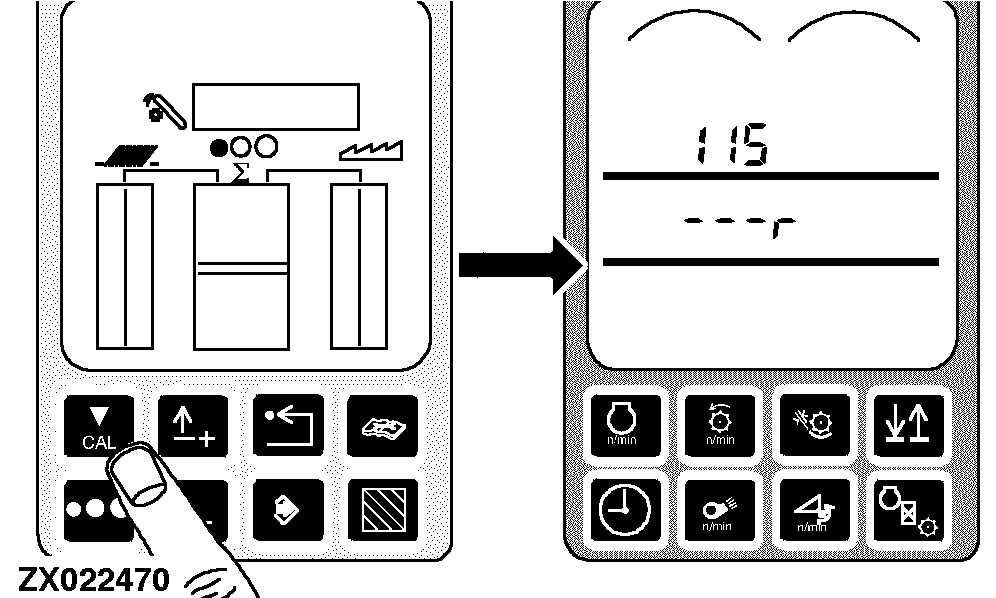

Press calibration button. 115 and - - - r will be displayed.
Press chopper vane adjust switch (A) on right side to fully orientate chopper vanes to the right.
A-Chopper Vane Adjust Switch
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-7/10
|
|

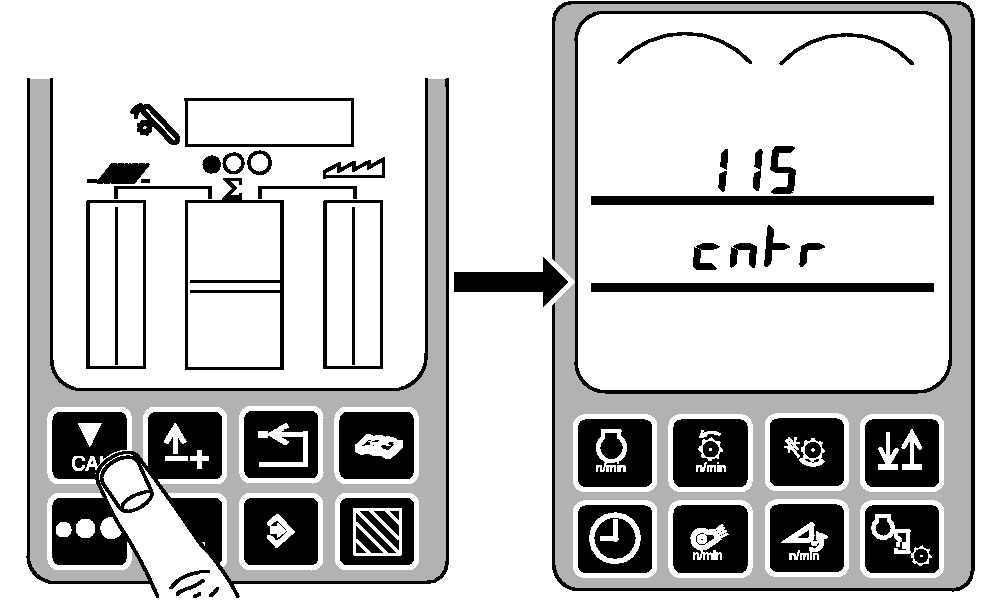

Press calibration button. 115 and cntr will be displayed.
Press chopper vane adjust switch (A) on left side until chopper vanes are centered.
A-Chopper Vane Adjust Switch
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-8/10
|
|
Press calibration button. 115 and EOC will be displayed.
|
|
|
|
OUO6075,0003AD1 -19-26OCT04-9/10
|
|
Press enter button to store calibration value or press back arrow button to abort calibration (not save values).
Press back arrow button to return to normal operation.
| Chopper Vane Angle Error Codes |
| Error Code |
Error Description |
| Err1 |
Left point is less than minimum voltage. |
| Err2 |
Left point is great than maximum voltage. |
| Err3 |
Right point is less than minimum voltage. |
| Err4 |
Right point is great than maximum voltage. |
| Err5 |
Difference between right and left is less than 1 volt. |
| Err6 |
Center point is beyond left point. |
| Err7 |
Center point is beyond right point. |
|
|
|
|
