VISIONTRAK™ Display

VISIONTRAK allows the operator to do desired calibrations and setups for grain loss monitoring. The display will show grain loss levels in total loss as well as cleaning shoe and separator loss individually. The system will also display tailings volume and adjustable deck plate position (if equipped with this option).

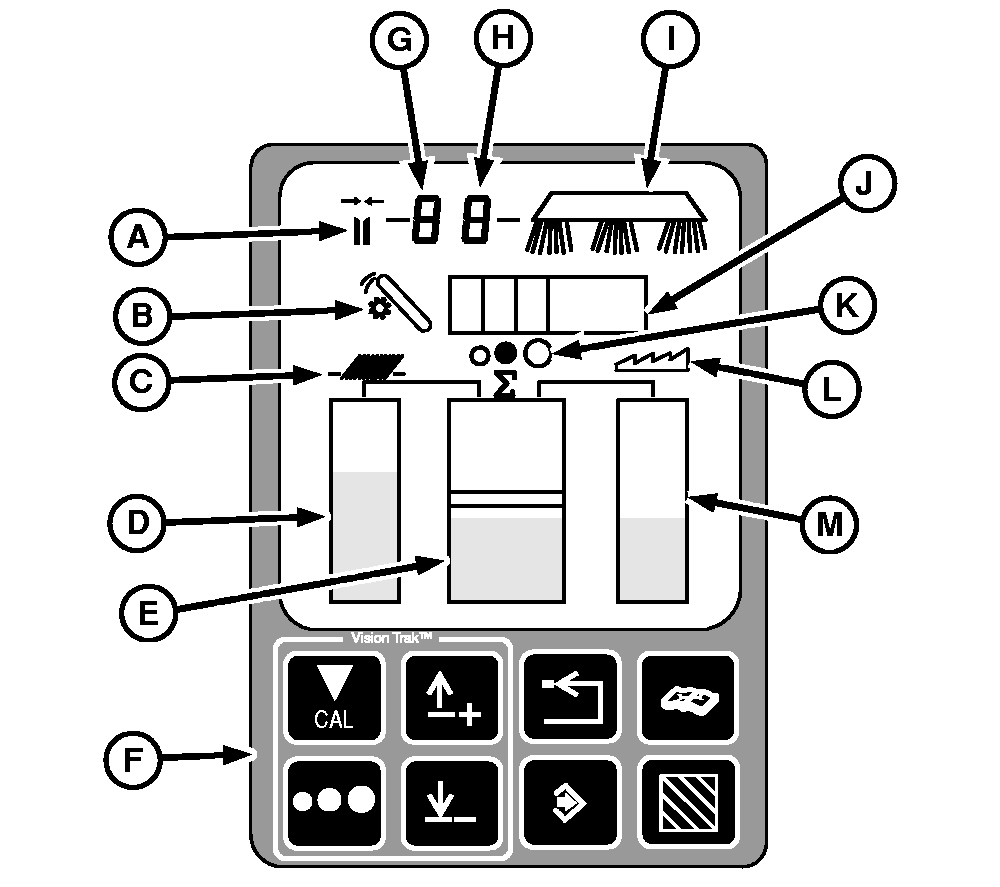

A-Adjustable Deck Plate Icon (Optional)
B-Tailings Volume Icon
C-Shoe Icon
D-Shoe Loss Display
E-Total Loss Display
F-Control Buttons
G-Deck Plate Position (Optional)
H-Chopper Vane Position
I-Adjustable Chopper Vane Position Icon
J-Tailings Volume Display
K-Seed Size
L-Separator Icon
M-Separator Loss Display

VISIONTRAK is a trademark of Deere & Company

OUO6075,0003ADC -19-08OCT04-1/1
