Deck Plate Position - In Cab Adjustment (Optional on 90 Series Corn Heads)

NOTE: To calibrate adjustable deck plates, see Calibration Procedures section.

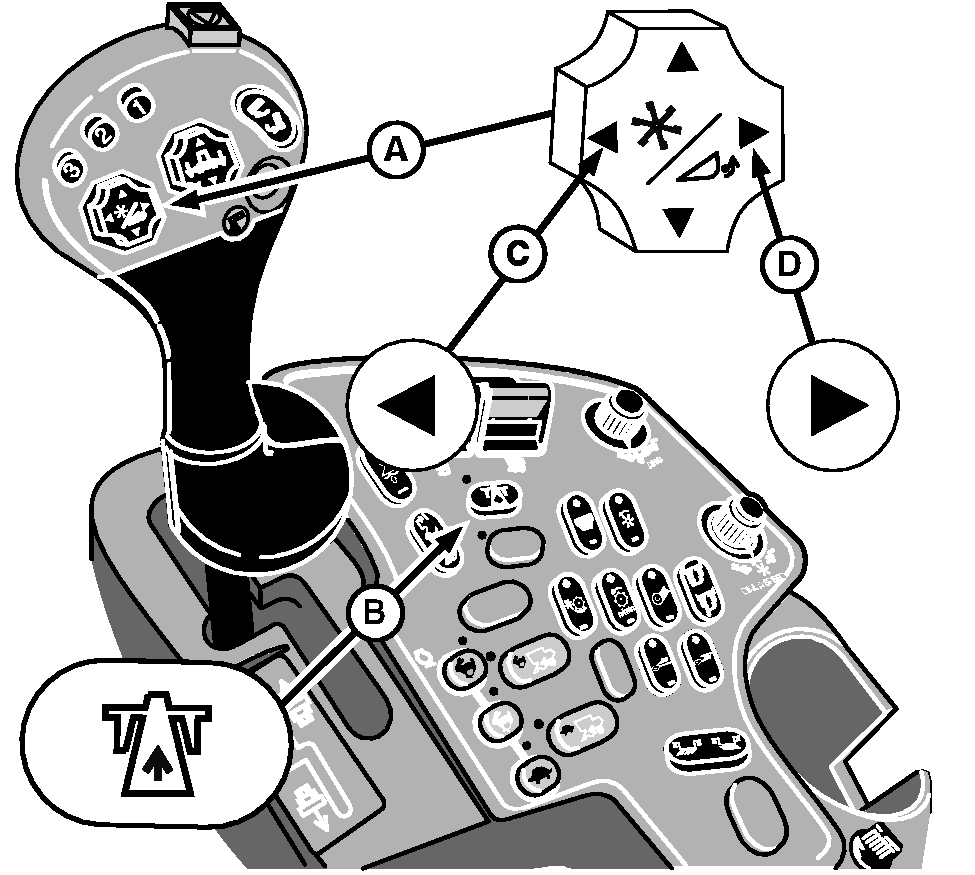

Reel fore/aft switch (A) on the multifunction control handle allows the operator to open and close the adjustable deck plates on 90 Series Corn heads.

Deck plates will be moved when:

• Engine is running
• Road transport disconnect switch (B) is in field position

Press reel forward switch (C) to open deck plates and press reel aft switch (D) to close deck plates.

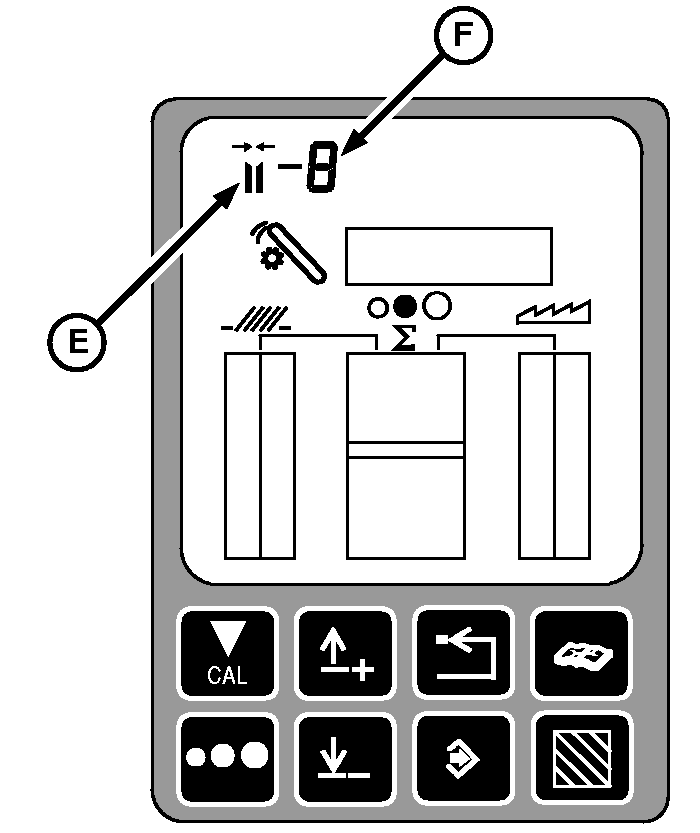

Deck plate position icon (E) and plate opening (F) (a decimal value between 0 and 9) will be displayed in the upper left-hand side of the display. Zero is displayed when deck plates are in minimum position and 9 is displayed when deck plates are opened to the maximum position.

A-Reel Fore/Aft Switch
B-Road Transport Disconnect Switch
C-Reel Forward Switch
D-Reel Aft Switch
E-Deck Plate Position Icon
F-Deck Plate Opening
