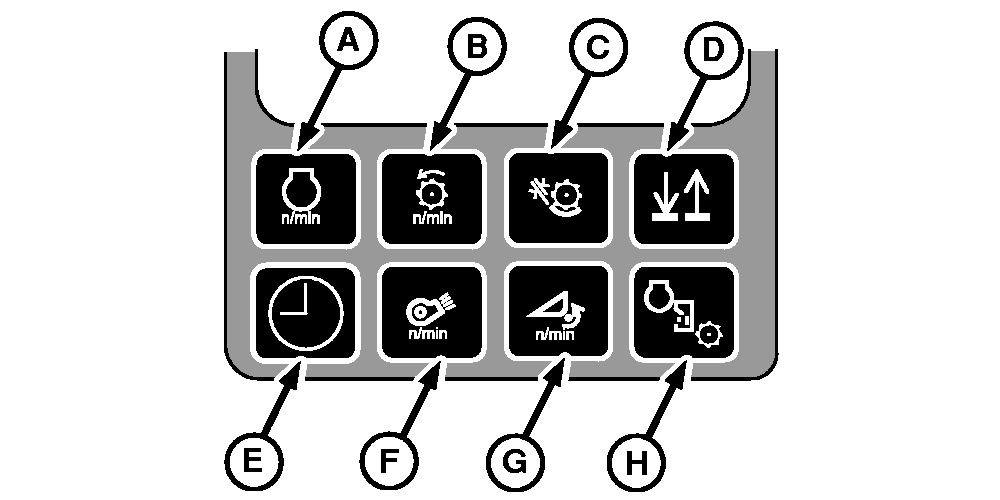

Triple Display Tachometer Control Buttons
A-Engine Speed Button
B-Threshing Speed Button
C-Threshing Clearance Button
D-Up/Down Arrow Button (Display Line Select)
E-Clock Select Button
F-Fan Speed Button
G-Fixed Feeder House Speed Button
H-Engine Hours/Separator Hours Button
|
|
|
|
OUO6075,0003AEA -19-11OCT04-1/9
|

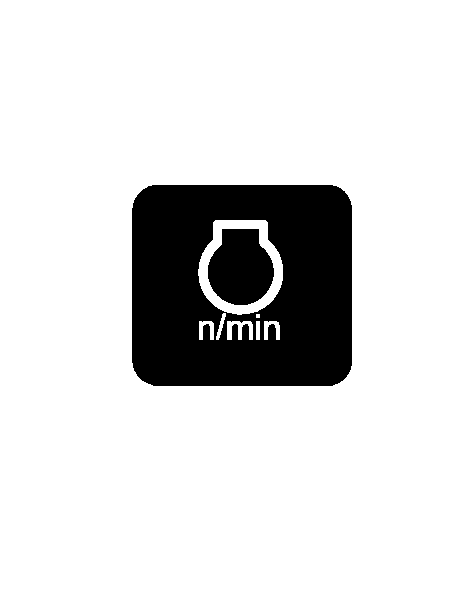

Engine Speed Button
Press and release engine speed button to display the current engine speed (rpm) on either line (middle or lower, depends on which line is selected) of the display.
|
|
|
|
OUO6075,0003AEA -19-11OCT04-2/9
|

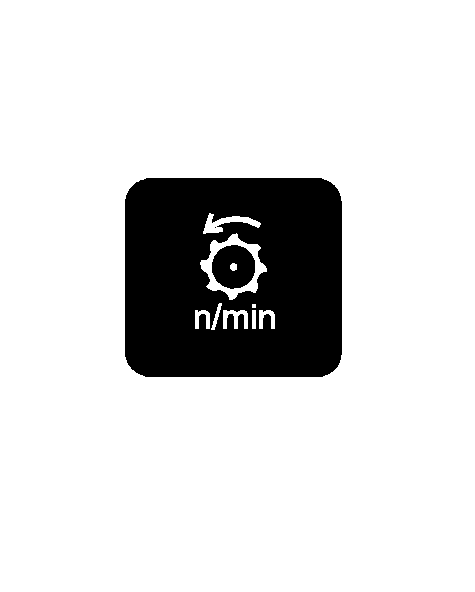

Threshing Speed Button
Press and release threshing speed button to display the current threshing speed (rpm) on either line (middle or lower, depends on which line is selected) of the display.
|
|
|
|
OUO6075,0003AEA -19-11OCT04-3/9
|

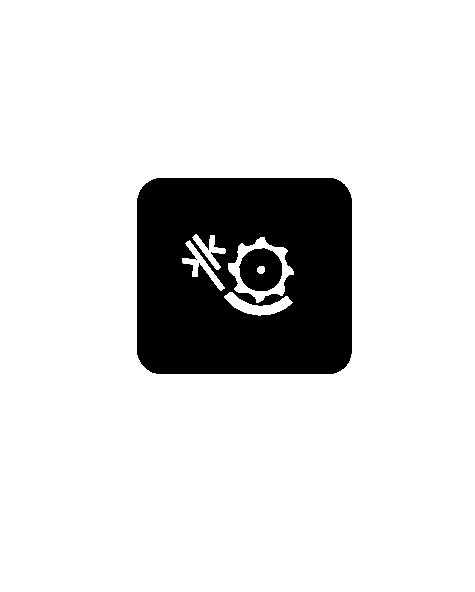

Threshing Clearance Button
Press and release threshing clearance button to display the current threshing clearance (as a relative number) on either line (middle or lower, depends on which line is selected) of the display.
|
|
|
|
OUO6075,0003AEA -19-11OCT04-4/9
|

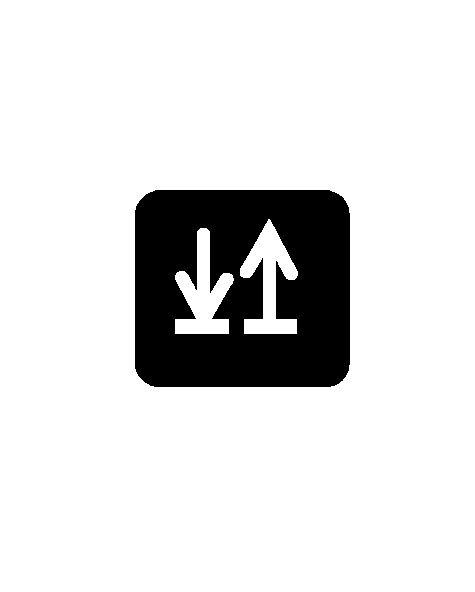

Up/Down Arrow Button (Display Line Select)
Press and release up/down arrow button to move the display from the currently active line to the other line.
|
|
|
|
OUO6075,0003AEA -19-11OCT04-5/9
|

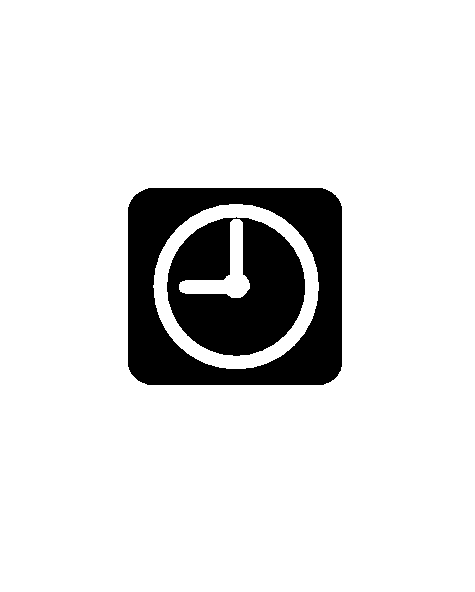

Clock Select Button
Press clock button to display the current time on the display.
|
|
|
|
OUO6075,0003AEA -19-11OCT04-6/9
|

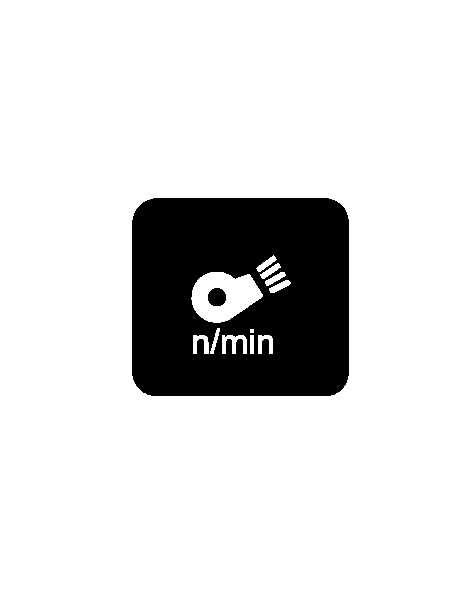

Fan Speed
Press and release fan speed button to display the current fan speed (rpm) on either line (middle or lower, depends on which line is selected) of the display.
|
|
|
|
OUO6075,0003AEA -19-11OCT04-7/9
|

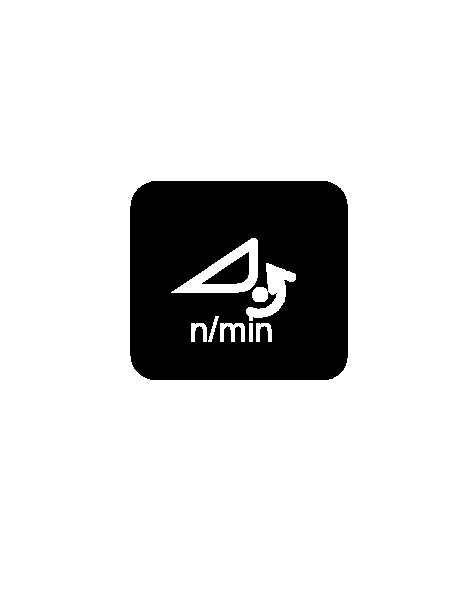

Fixed Speed Feeder House Button
Press and release fixed speed feeder house button to display the current fixed feeder house speed (rpm) on either line (middle or lower, depends on which line is selected) of the display.
|
|
|
|
OUO6075,0003AEA -19-11OCT04-8/9
|
Engine Hours/Separator Hours Button
Press and release engine hours/separator hours button to display the current engine or separator hours along with the appropriate symbol on the middle line of the display.
|
|
|
|
