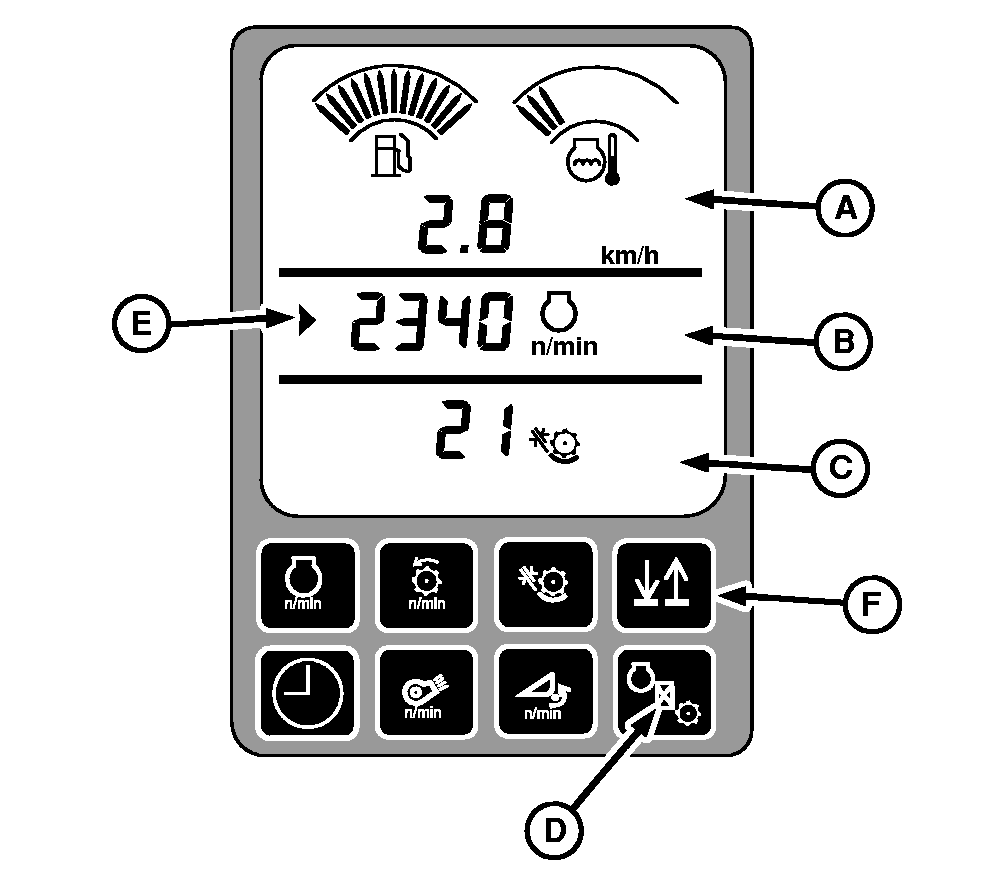

Digital Display LinesAt power up, along with the appropriate symbol the upper line display (A) will show the ground speed (km/h or MPH). When area counter button is pressed the upper line display will show the total area (Ha for hectares and A for acres). Field Total Area Counter is shown on middle line display (B). Field Area Counter is shown on lower line display (C). NOTE: When chaffer/sieve adjust switches are pressed on the armrest, the settings will appear for 10 seconds on the middle and lower lines of the display and then will return to what was previously displayed. Middle display line (B) and lower display line (C) can display the same data. The operator selects any of the following data to be displayed on either line (middle or lower) of the display.
To display engine and separator hours, press the hour/separator button (D). Engine or separator hours along with the appropriate symbol will be displayed on middle display line. The hours will remain displayed for ten seconds or until another button is depressed which will return the display to its previous mode. Pressing the concave, cleaning fan speed or threshing speed switches on the armrest will cause that function to be displayed on the tachometer. It will remain displayed for 10 seconds after the switch is released. Middle and lower display always show the last information displayed when the key was turned OFF. |
|
OUO6075,0003AEB -19-11OCT04-1/2 |
|
Either the middle line or the lower line of the display can be changed by the operator to display any data of his choice. The line that is currently active to change, will be shown by indicator arrow (E) at the left side of the display. The appropriate arrow will be displayed when the operator pushes the up/down arrow button (F), which will move the display from the current active line to the line selected by the up/down arrow button. |
