Tachometer Service Information

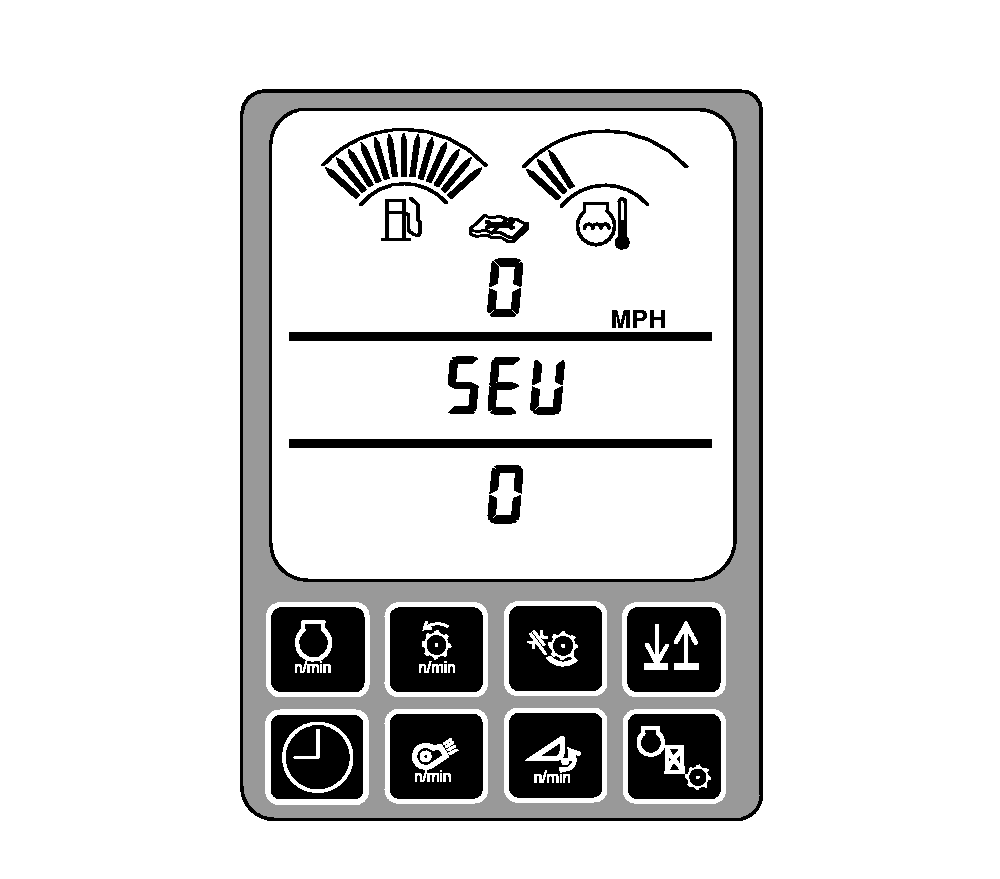

Use hour meter as a guide when servicing the combine. Every 50 hours of engine operation, the characters SEU will be displayed on the display tachometer, indicating service is needed. Service interval timer can also be reset if service is performed between 45 and 50 hours, but not prior to 45 hours. IMPORTANT: Service times are for average conditions. Service more often if combine is used in extreme conditions. To clear service indicator (SEU), (see Lubrication and Maintenance section). |
|
CAUTION:
To prevent injury, never lubricate or service combine, header, or engine while it is running. Shut OFF engine, set parking brake and remove key.
OUO6075,0003AEC -19-11OCT04-1/1 |
