HEADERTRAK - Return to Cut

HEADERTRAK - Return to Cut system allows the operator to select the position of the header relative to the combine chassis and return to that position automatically.

HEADERTRAK - Return to Cut must be calibrated each time the header is used with the combine (see Calibration Procedures section).

Activation buttons 1, 2 or 3 located on the multifunction control handle are used to select one of the three different programmable header heights.

NOTE: If both Return to Cut and Stubble Height Control are enabled, activation button 1 will activate Return to Cut. Activation buttons 2 and 3 will be assigned to Stubble Height Control.

HEADERTRAK - Return to Cut is controlled via the feeder house height potentiometer when in the range above 250 mm (9.84 in.).

Operation:

HEADERTRAK - Return to Cut will be active when:

  • Properly equipped header is connected to combine
  • Engine is running
  • Road transport disconnect switch is in field position
  • HEADERTRAK - Return to Cut is enabled
  • Header is engaged


1-Activation Button
2-Activation Button
3-Activation Button

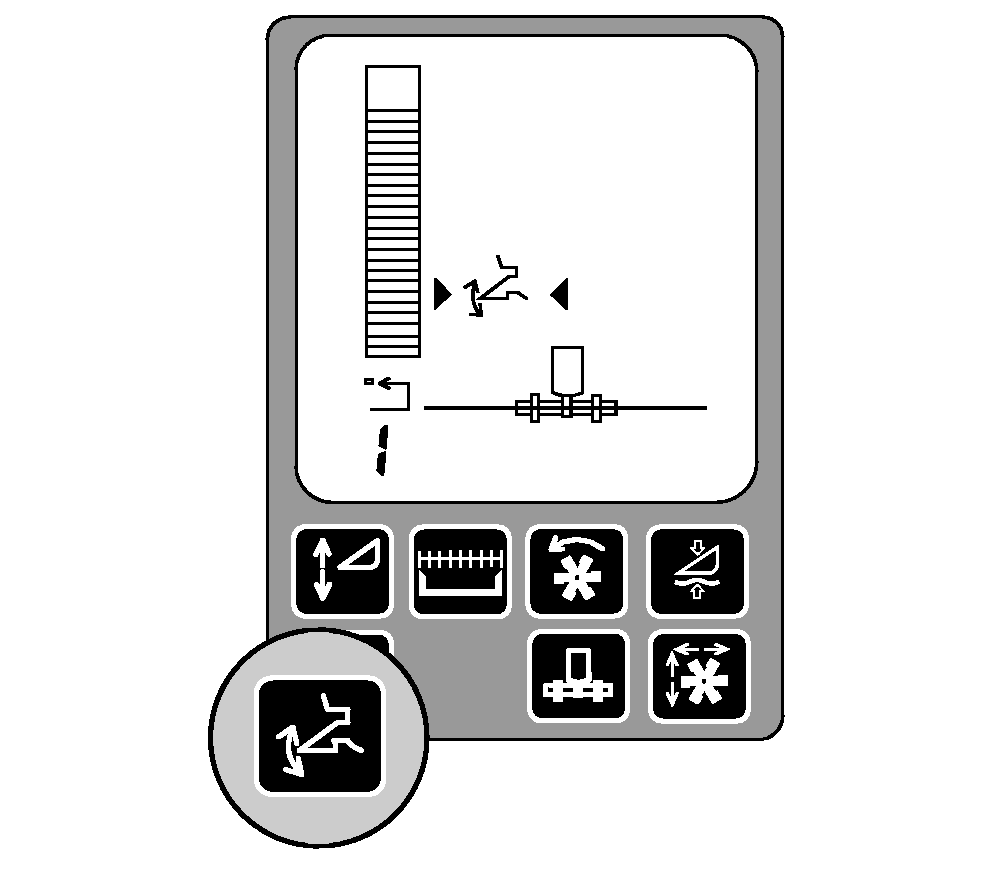

H81587
H78177

OUO6075,0003AEE -19-16AUG05-1/2

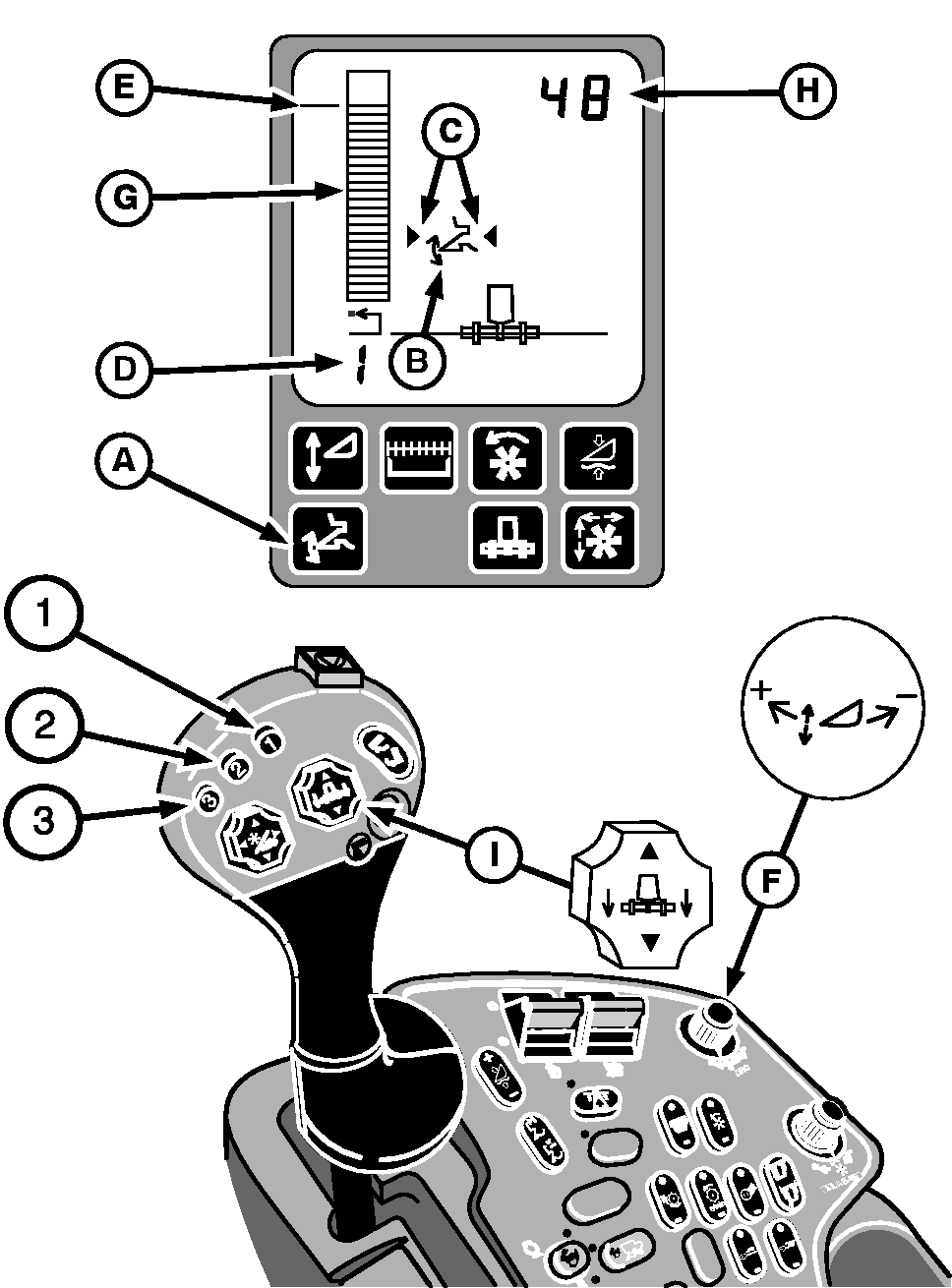

The system is enabled by pressing button (A) on the display. Symbol (B) will appear on the display.

Activate HEADERTRAK - Return to Cut by pressing activation buttons 1, 2 or 3 on the multifunction control handle. Arrow symbols (C) indicate the system is active.

Number (D) in the lower left corner of the display indicates which activation button was selected.

To change the height setpoint (E) of the activation buttons, press the desired activation button and adjust the height using stubble height and ground pressure control dial (F) to move the height setpoint.

Turn stubble height and ground pressure control dial toward the plus (+) symbol to raise the header and setpoint or towards the minus (-) symbol to lower the header and setpoint.

Bar graph (G) and number display (H) show the relative position of the header based on HEADERTRAK - Return to Cut sensor linked to the feeder house.

Manually adjusting header height using header raise/lower switch (I) or tilting header to the left/right will deactivate the system.

Press any of the activation buttons to reactivate the system. Header will move to the pre-selected height.

The system can be disabled by pressing button (A) on the display.

H81588


A-HEADERTRAK - Return to Cut Button
B-HEADERTRAK - Return to Cut Symbol
C-Indicator Arrows
D-Activation Button Number
E-Height Setpoint
F-Stubble Height and Ground Pressure Control Dial
G-Bar Graph
H-Number Display
I-Header Raise/Lower Switch

OUO6075,0003AEE -19-16AUG05-2/2
