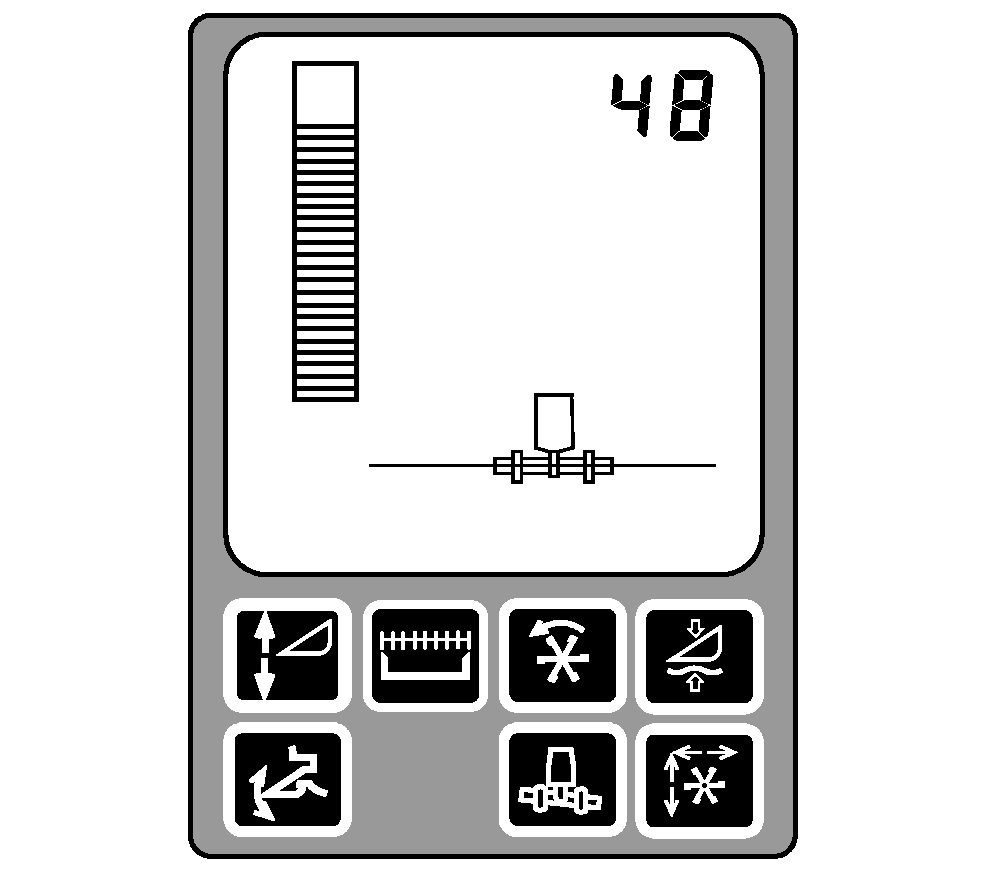

Description of HEADERTRAK Control System

HEADERTRAK Control System compensates for uneven ground and controls the horizontal and vertical position of the header. The system continuously compares the preset position and the actual position and thus keeps the header in the desired working position. Desired values are entered by the control dials located under the armrest lid. Information about the actual position comes from the potentiometers on the components. The control board processes both signals and adjusts the header's position accordingly by means of the hydraulic system.

There are two operating modes for HEADERTRAK Lateral Tilt Adjustment:

• Manual Adjustment - In this mode the hydraulic components are directly activated by the multifunction control handle.
• Automatic Adjustment - In this mode the parallel adjustment of the header in relation to the ground is carried out by the skid plates. This ensures that the distance between the header and the ground is equal on both the left-hand and right-hand sides.

There are four operating modes for HEADERTRAK Vertical Adjustment:

• Manual Adjustment - In this mode the hydraulic components are directly activated by the multifunction control handle.
• HEADERTRAK - Return to Cut - In this mode the platform can be set to any position within the feeder house range.
• HEADERTRAK - Stubble Height - In this mode the height of the platform is maintained with height sensors attached to the platform. This ensures that the automatic header height sensing is always constant.
• HEADERTRAK - Ground Pressure - In this mode the combine maintains a constant header pressure with ground contact.

OUO6075,0003AF6 -19-12OCT04-1/3

NOTE: It is possible to override all the automatic modes manually.

HEADERTRAK Control For Automatic Functions

HEADERTRAK sensitivity adjust dial (A) controls the response rate of the header raise/lower functions when in the automatic modes.

Requirements:

• Engine is running
• Road transport disconnect in field position
• Header drive engaged
• HEADERTRAK - Stubble Height Control is activated

Operation:

Press button (B) to enable HEADERTRAK - Stubble Height Control.

Press activation button (C) to lower the header to the preselected position. Use HEADERTRAK sensitivity adjust dial (A) to adjust the rate at which the header follows the ground contour.

Turn clockwise - Increase response rate.

Turn counterclockwise - Decrease response rate.

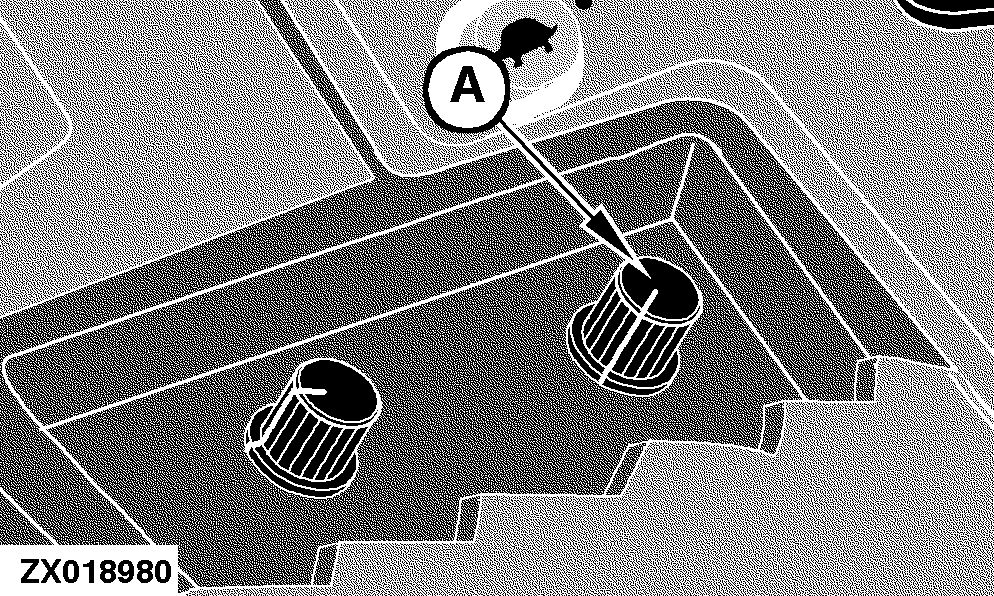

A-HEADERTRAK Sensitivity Adjust Dial

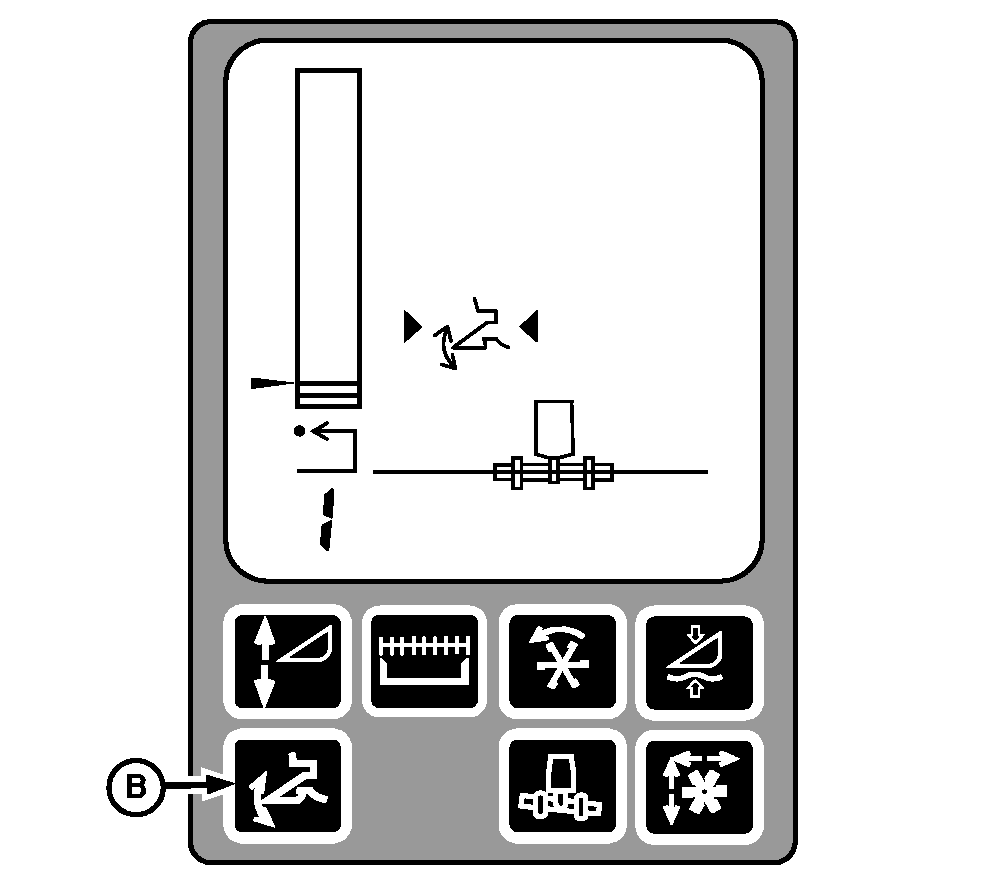

B-Stubble Height Control Enable Button

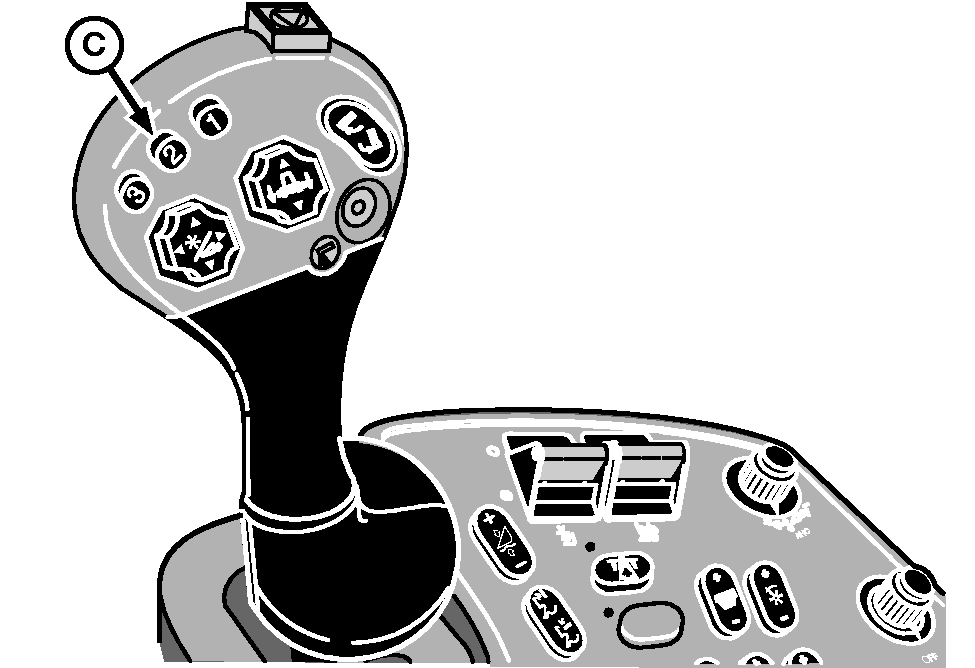

C-HEADERTRAK - Stubble Height Control Activated Button

OUO6075,0003AF6 -19-12OCT04-2/3

HEADERTRAK Control For Manual Functions

Feeder house manual rate adjust dial (A) controls the response rate of the header height and manual raise/lower full range movement when in manual mode (with or without HEADERTRAK control function activated).

Requirements:

• Engine is running
• Road transport disconnect in field position
• Header drive engaged
• HEADERTRAK - Return to Cut button (B) activated or deactivated.

Operation:

Use response rate dial (A) to adjust the rate at which header will react when being raised/lowered by switch (C).

Turn clockwise - Increase response rate.

Turn counterclockwise - Decrease response rate.

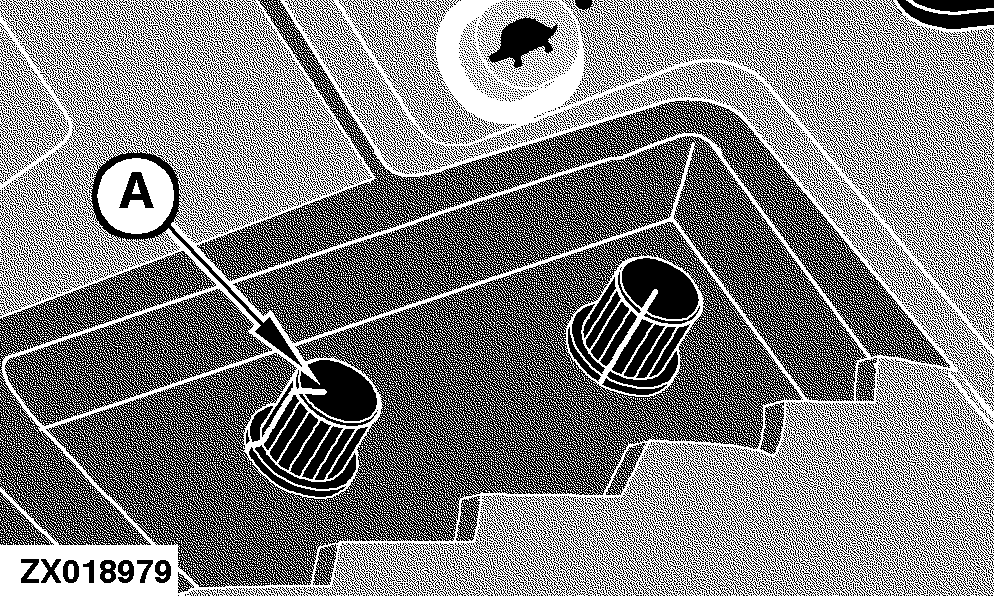

A-Feeder House Manual Rate Adjust Dial

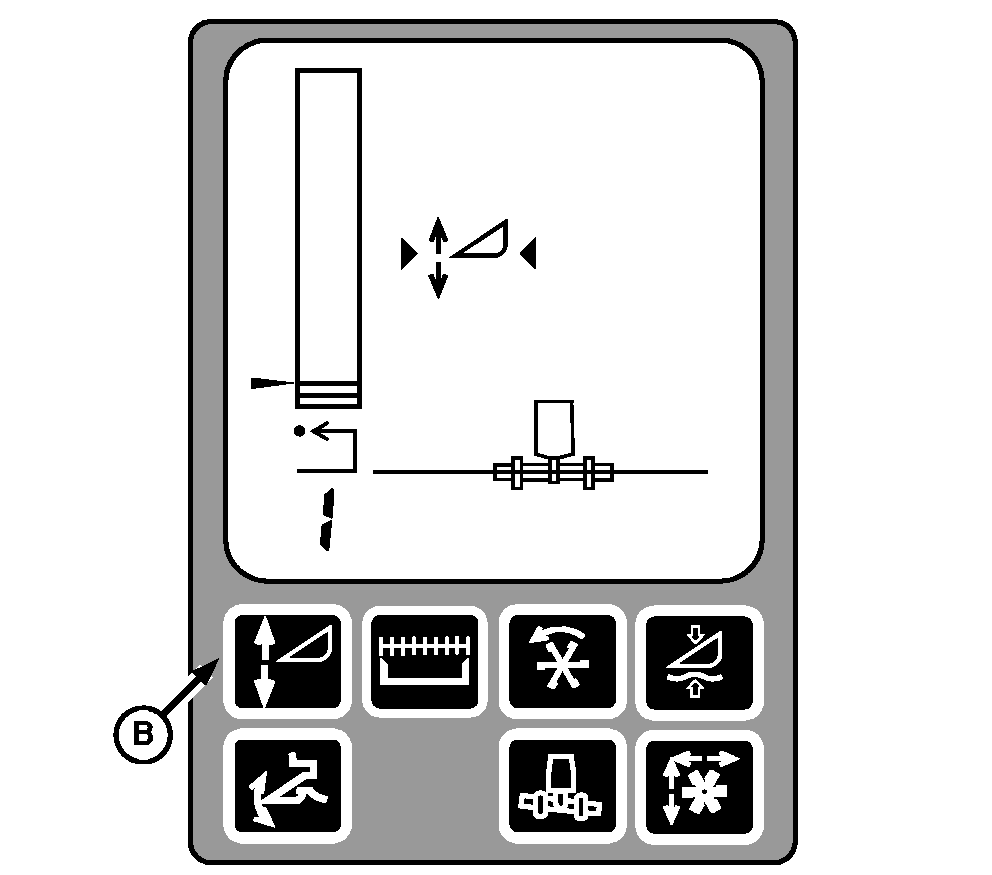

B-HEADERTRAK - Return to Cut Enable Button

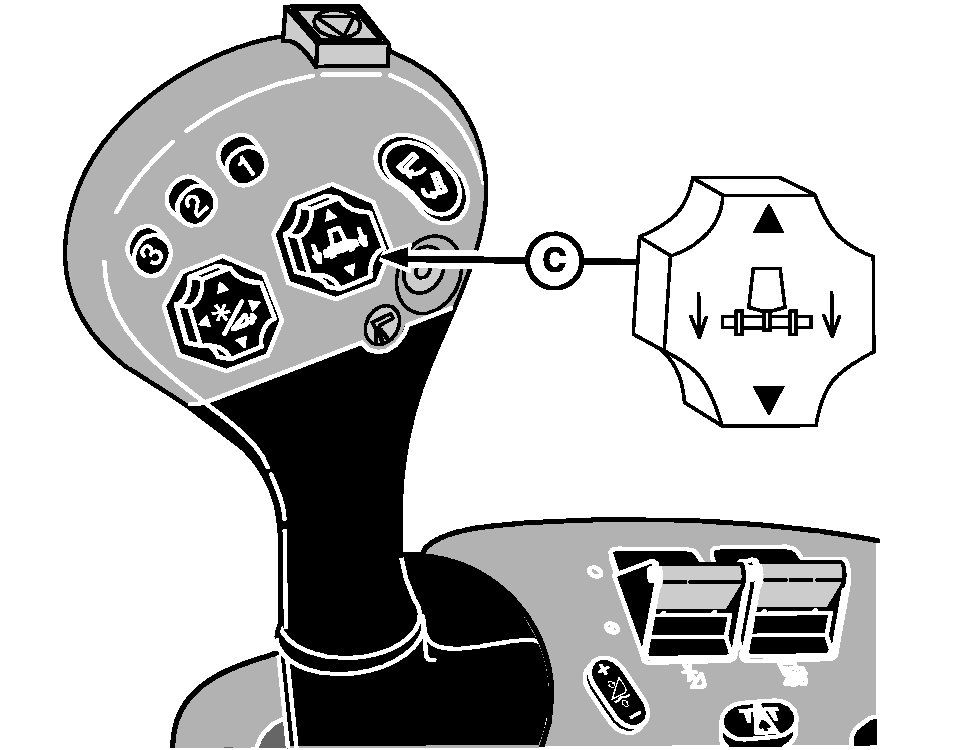

C-Header Raise/Lower Switch

OUO6075,0003AF6 -19-12OCT04-3/3
