Field Total Area Counter Clear Calibration

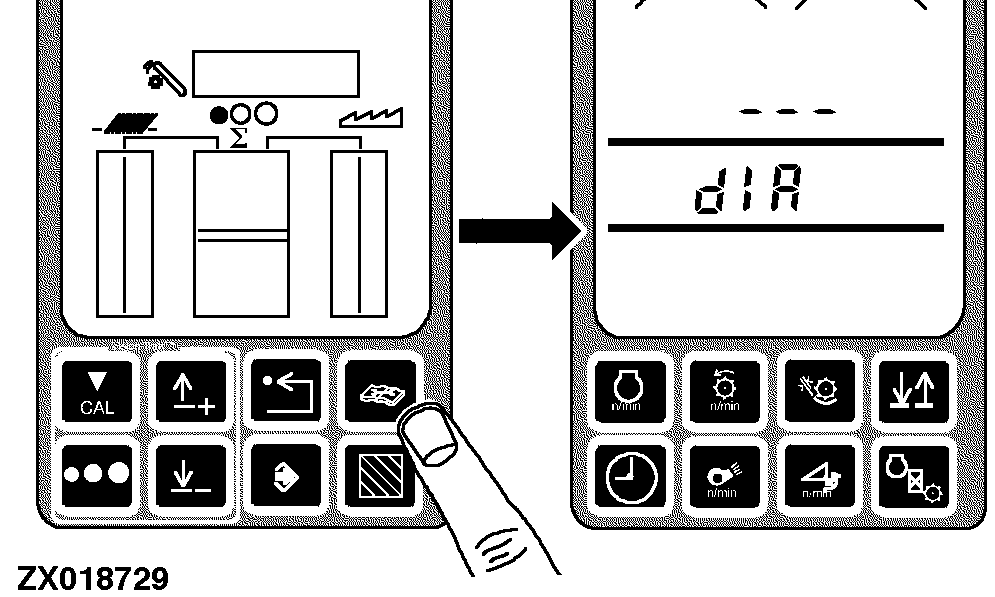

Press diagnostic button. dIA will be displayed.

OUO6075,0003BCA -19-03NOV04-1/5

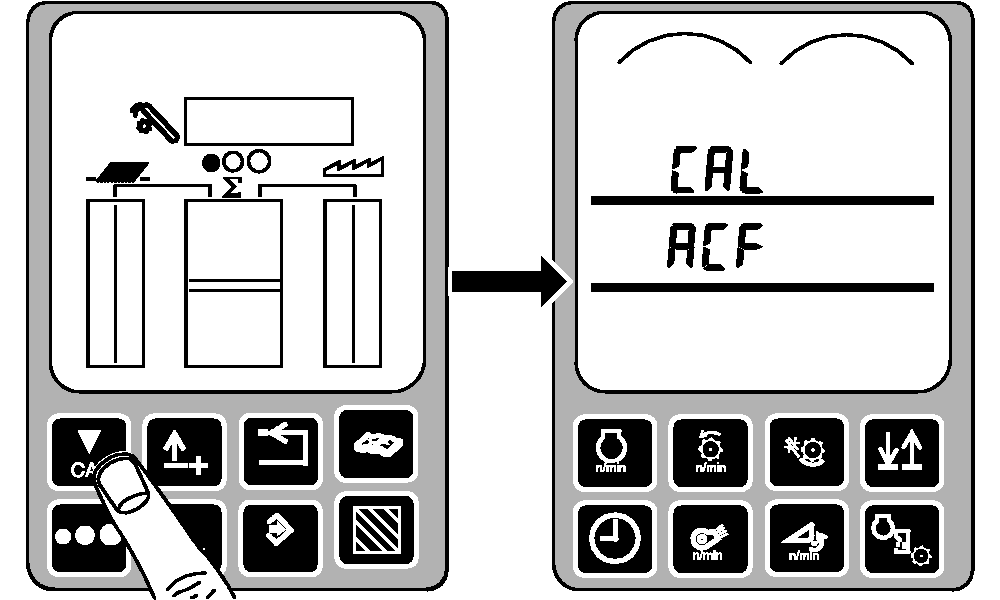

Press calibration button. CAL and ACF will be displayed.

OUO6075,0003BCA -19-03NOV04-2/5

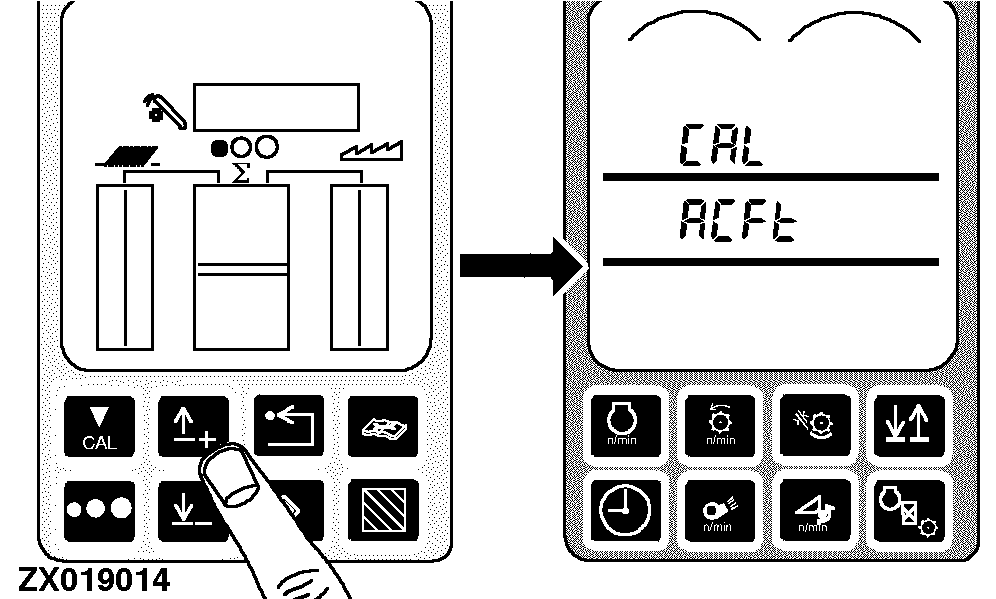

Press up arrow button until CAL and ACFt appear.

OUO6075,0003BCA -19-03NOV04-3/5

Press enter button. ACFt and clr? will be displayed.

OUO6075,0003BCA -19-03NOV04-4/5

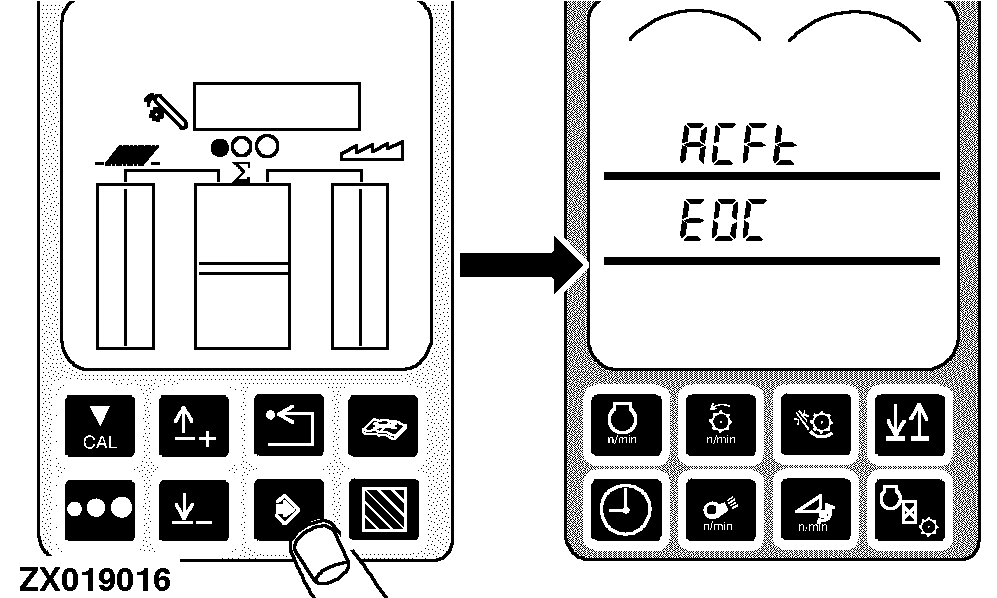

Press enter button to erase field total area counter values. EOC will be displayed for two seconds then CAL and ACFt will be displayed.

Press back arrow button to return to normal operation.

NOTE: Clearing Field Total Area Counter values will also clear Field Area Counter values.

OUO6075,0003BCA -19-03NOV04-5/5
