Batteries-Removing and Installing

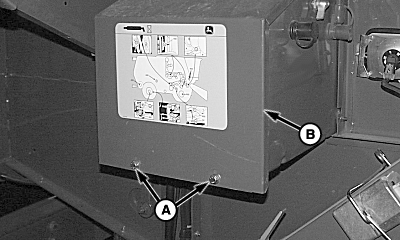

1. Remove cap screws (A) and cover (B) to access batteries.


A-Wing Nuts
B-Cover

H83464

OUO6075,0003E1A -19-25MAY05-1/2

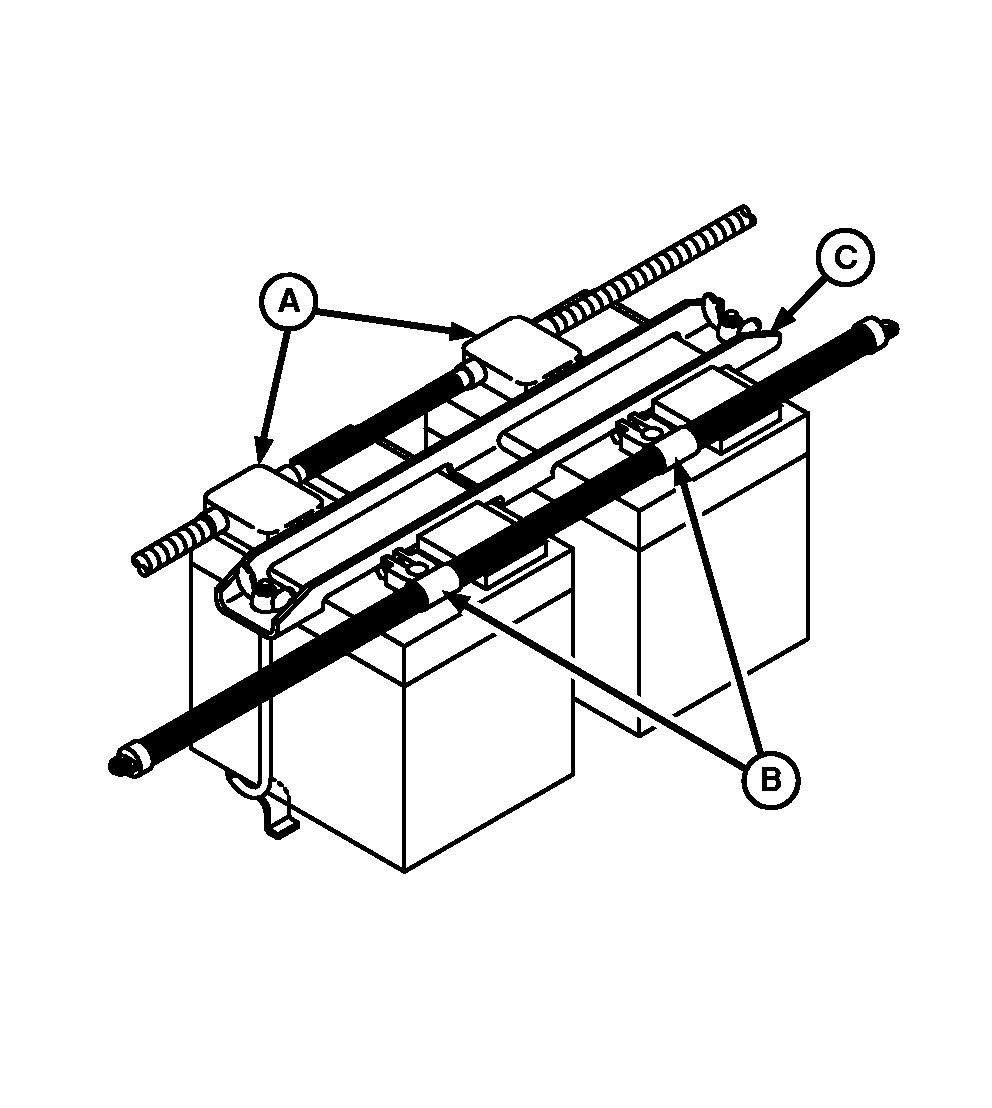

2. Disconnect negative (-) cable (B) and then disconnect positive (+) cable (A).

3. Remove battery clamp (C) to remove batteries.

4. Clean batteries and battery mounting area.

5. Install batteries using clamp.

6. Clean battery cables and posts.

7. Attach positive cable (+) to battery then negative cable (-) to battery.


A-Positive Cable
B-Negative Cable
C-Clamp

H72429

OUO6075,0003E1A -19-25MAY05-2/2
