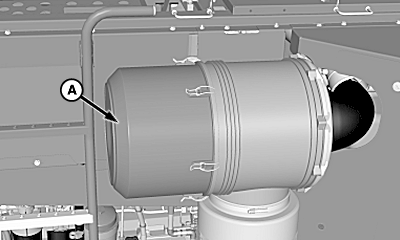

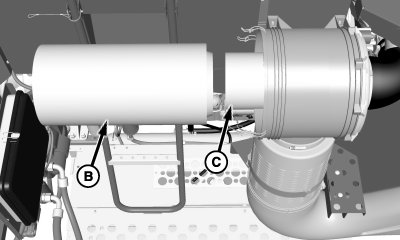

Air Cleaner Filters-RemovingIMPORTANT: When servicing filters, shut OFF engine, set parking brake and remove key so dirt cannot be pulled into engine. Service filters only when engine air filter light stays ON. Unsnap dust cover (A) and remove primary air filter (B). Unscrew safety filter (C) in a counterclockwise direction to remove. The safety filter stops dirt that would pass through a damaged primary filter. IMPORTANT: Never wash, brush or knock elements, but install a new element if needed. In an emergency situation clean elements using dry compressed air (500 kPa (72.5 psi). Clean the elements from the inside out making sure the tip of the air gun does not come in contact with the filter paper. Never run engine without both filters in place. Service filters as needed. Install safety filter and turn in a clockwise direction until hand tight. Install primary air filter and dust cover. Check all connections in the air intake system. Be certain they are tight. IMPORTANT: Do not use any exhaust flow cleaning unit to blow chaff off combine. Using such a unit can cause air filter failure, followed by engine failure. |
|
OUO6075,0003E1B -19-17FEB05-1/1 |
