Fuel Precleaner Filter-Cleaning

NOTE: Clean fuel precleaner filter if buildup is visible on filter screen or if service codes ECU/A00 94.01 and ECU/A00 94.18 are displayed on cornerpost.

1. Start engine and run 3 to 5 minutes at low idle if machine had not been previously running.

2. Shut OFF engine.

3. Close fuel shut off at bottom of fuel tank to prevent drain back within supply line.

4. Thoroughly clean fuel precleaner assembly and surrounding area.

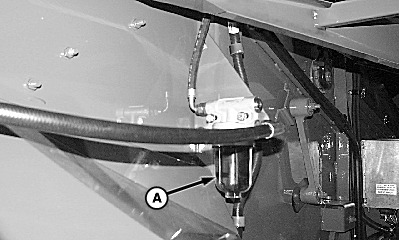

5. Remove precleaner bowl (A) using a 25 mm (1 in.) socket on bottom of bowl.

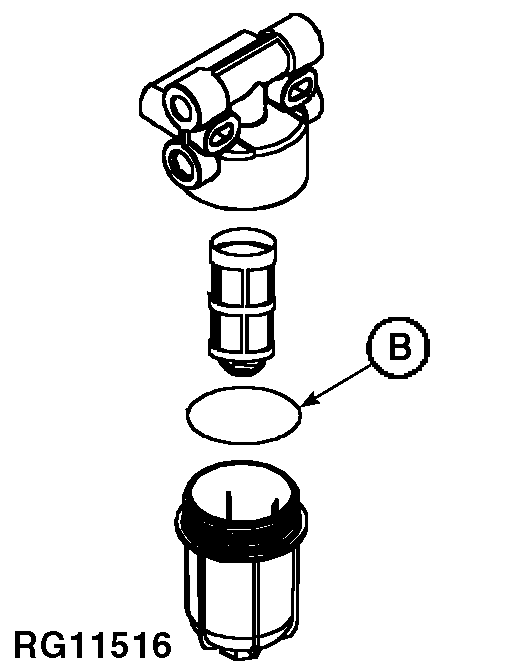

6. Clean filter screen and precleaner bowl. Inspect o-ring (B).

7. Install screen and tighten precleaner bowl.

8. Open fuel shut off to allow precleaner to fill.

9. Start engine and run 3 to 5 minutes at low idle.

A-Precleaner Bowl
B-O-ring

OUO6075,0003ED8 -19-22MAR05-1/1
