Water Separator-Draining

CAUTION: Always shut OFF engine, set parking brake and remove key before performing maintenance work on fuel filter.

When fuel/separator bowl (A) senses water in fuel system service code ECU/A00 97.31 will be generated on cornerpost display.

If error code appears, drain fuel/water separator bowl using drain (B) and reset error codes when water is drained from fuel/separator bowl.

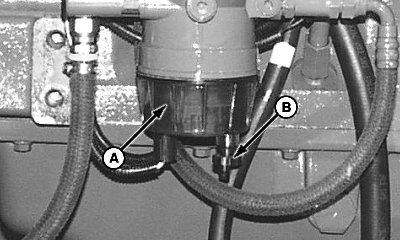

A-Separator Bowl
B-Drain

OUO6075,0003ED9 -19-22MAR05-1/1
