High Intensity Discharge (Xenon) Light-Adjustment

causym CAUTION: Raise feeder house and lower safety stop before replacing or adjusting headlights.

NOTE: Vertical adjustment of HID-Xenon light assemblies must be rotated to first notch to achieve correct light angle.

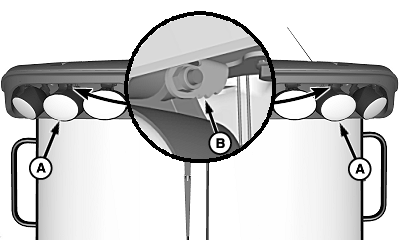

Vertical Adjustment: Rotate light assembly (A) to the first notch (B).

H83537


A-Light Assemblies
B-First Notch

OUO6075,0003F8E -19-20MAY05-1/2

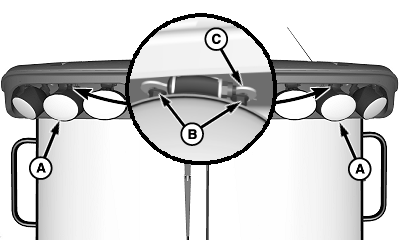

Horizontal Adjustment: To adjust light assemblies (A), loosen cap screws (B) and rotate light bracket (C) towards center of cab and tighten cap screws.


A-Light Assemblies
B-Cap Screws
C-Light Bracket

H83622
