Lubrication Decal Locations

These lubrication decals (A) show the different locations of grease points around the machine. Follow the lubrication times provided on the decals and refer to the hour intervals listed in this section for further information.

A-Lubrication Decals

Left-Hand Lubrication Decal

H83439

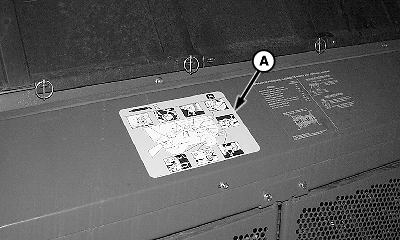

Right-Hand Rear Lubrication Decal

OUO6075,0003F98 -19-25MAY05-1/1
