Chaffer Calibration-Field Operation

IMPORTANT: Clear all debris from chaffer before calibrating.

Chaffer adjust motor and chaffer elements are calibrated using this calibration procedure. Chaffer calibration must be performed after manually adjusting the chaffer motor or to restore system accuracy.

Prepare chaffer for calibration:

  • Turn key switch to "RUN" position or start combine

OUO6075,000407C -19-15AUG05-1/9

Press diagnostics button. dIA will be displayed.

H70848

OUO6075,000407C -19-15AUG05-2/9

Press calibration button. CAL and ACF will be displayed.

H73140

OUO6075,000407C -19-15AUG05-3/9

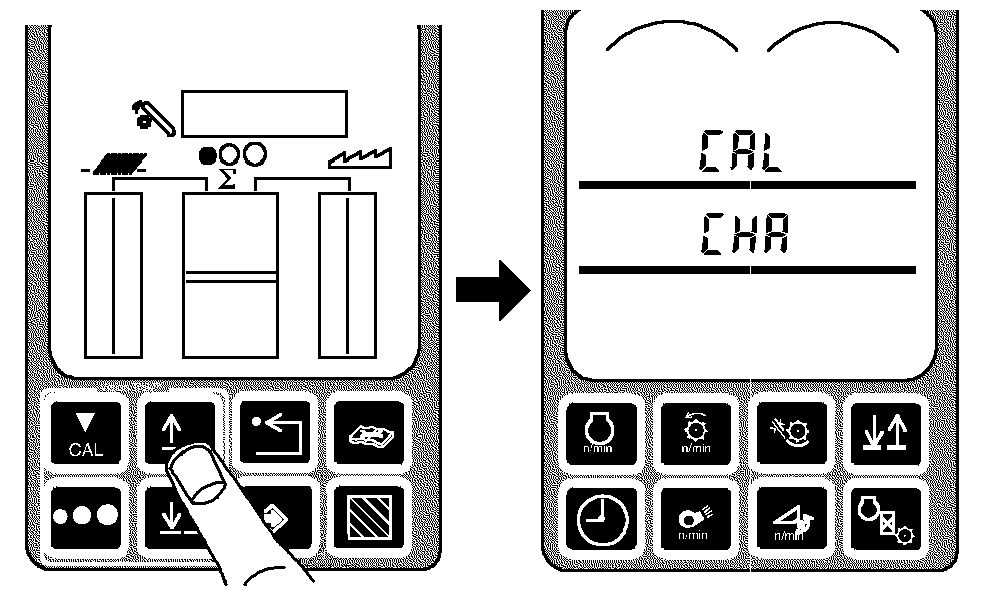

Press up or down arrow button until CAL and CHA appear.

H70199

OUO6075,000407C -19-15AUG05-4/9

Press enter button. CLOS will be displayed.

H70200

OUO6075,000407C -19-15AUG05-5/9

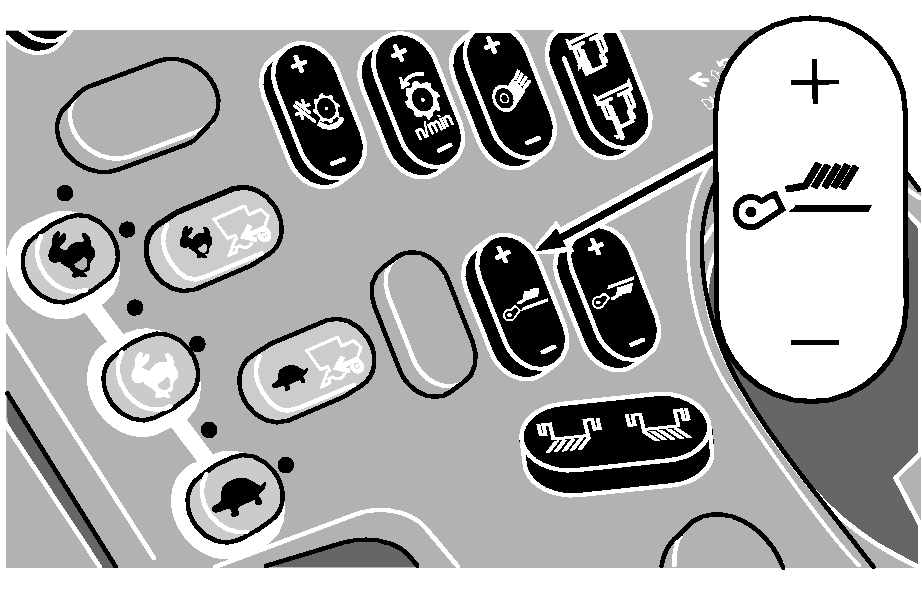

Close chaffer element with chaffer adjust switch until 0 mm is displayed.

H81621

OUO6075,000407C -19-15AUG05-6/9

Press calibration button.

NOTE: When HOLd is displayed the chaffer is opening and closing automatically.

HOLd will be displayed on middle line of display.

H70201

OUO6075,000407C -19-15AUG05-7/9

HOLd will change to EOC when calibration is complete.

H73229

OUO6075,000407C -19-15AUG05-8/9

Press enter button to store calibration value or press back arrow button to abort calibration (not save values).

Press back arrow button to return to normal operation.
