Park/Road Lights

The three position Park/Road light switch controls the position lights, cab instrument lights, head lights, beacon lights, tail lights, and turn signals (when turn signal lever is operated).

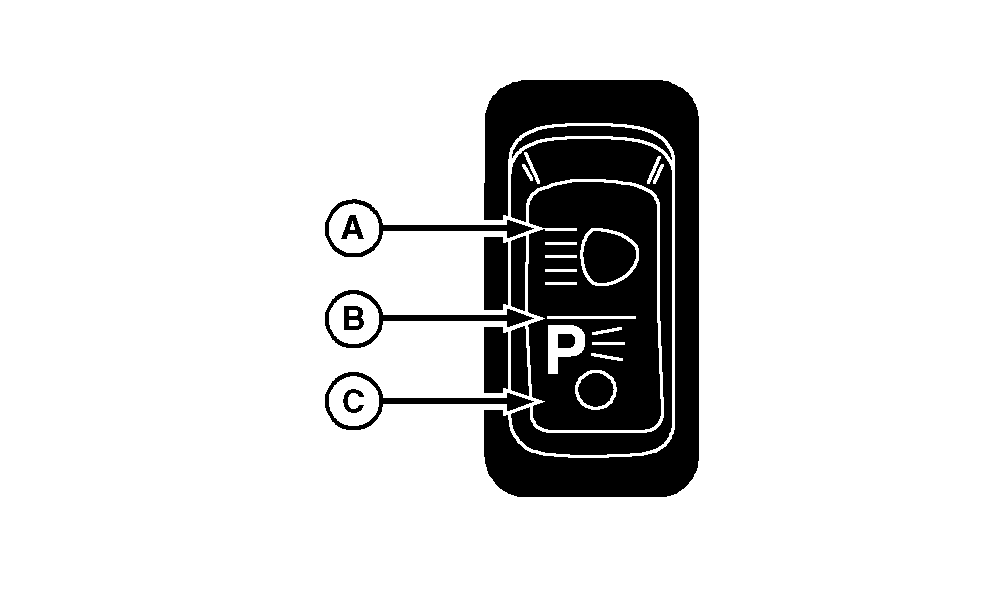

A-Road Lights, OFF
B-Position Lights, ON
C-Position Lights, Tail Lights, Beacon Lights, Head Lights, Turn Signals

H78252
H78244

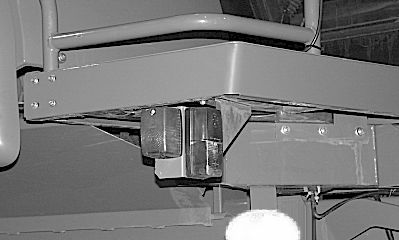

Front Position Lights (White)

H78250

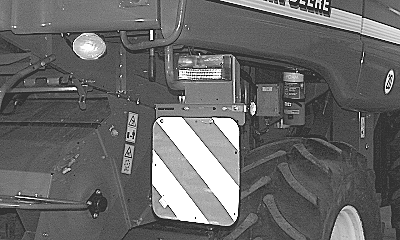

Rear Position Lights (Red)

OUO6075,0004081 -19-29SEP05-1/2

H84219

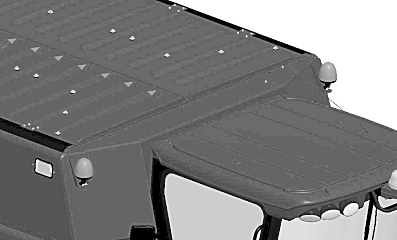

Front Beacon Lights
H84220

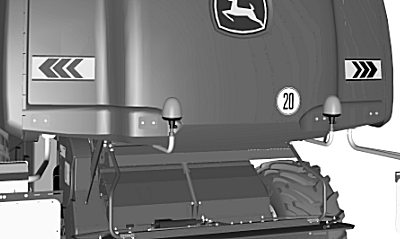

Rear Beacon Lights

H84218

Head Lights
H70553

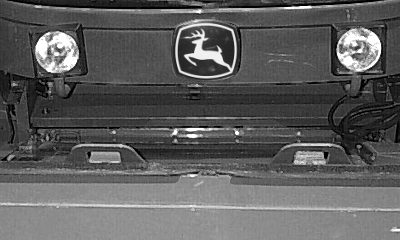

French Head Lights

causym CAUTION: Position lights and beacons lights must be turned ON when transporting on a public roadway.

NOTE: French combines require two beacon lights on the front and two beacon lights on the rear.

Park/Road light switch also controls the beacon lights, position lights, and head lights (top switch position).

OUO6075,0004081 -19-29SEP05-2/2
