Auto Beacon/Field Lights

The three position Auto Beacon/Field light switch controls the position lights, auto beacon lights, all headlights, grain tank light, unloading auger light, side finder lights and stubble lights.

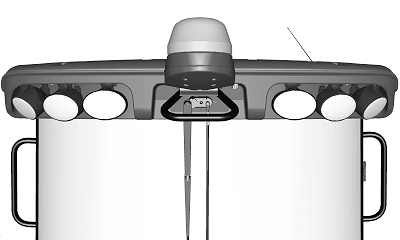

Auto Beacon

When Auto Beacon/Field light switch is in the middle position beacon lights will illuminate when grain tank is three quarters full. This provides a signal to the grain cart operator that the grain tank is full and is ready to be unloaded.

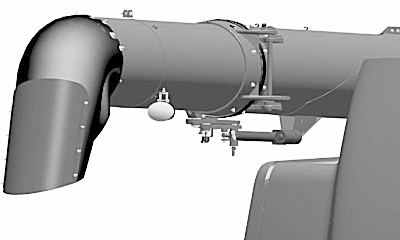

Unloading Auger Light

Only operates when Auto Beacon/Field light switch is in the field position and unloading auger is swung out more than 50%.

Field lights

When Auto Beacon/Field light switch is in the top position all cab lights, grain tank lights, unloading auger light, position lights, side finder lights, auto beacon light and stubble lights will turn ON.

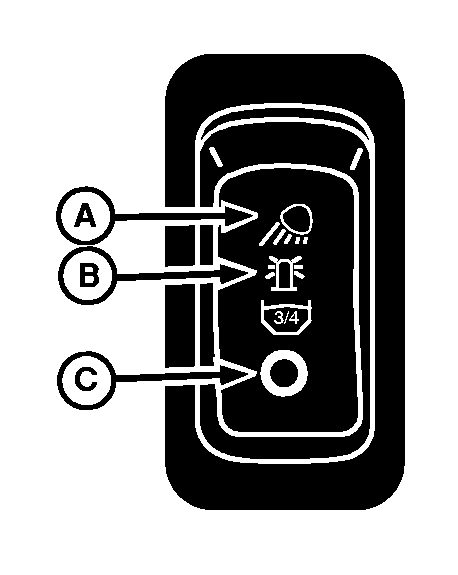

A-Field and Auto Beacon Lights, ON
B-Auto Beacon, ON
C-Field and Auto Beacon Lights, OFF

OUO6075,0004084 -19-29SEP05-1/3

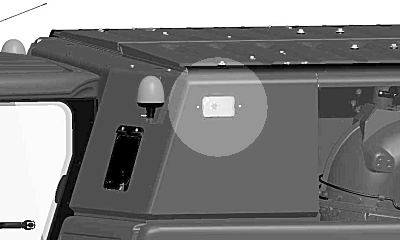

Side Finder Lights

Side finder lights are used when additional light to the side is needed.

These lights are controlled by the turn signal lever and operate when the AUTO Beacon/Field light switch is in the field position.

OUO6075,0004084 -19-29SEP05-2/3

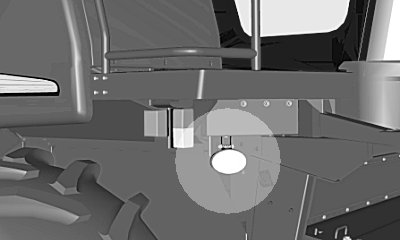

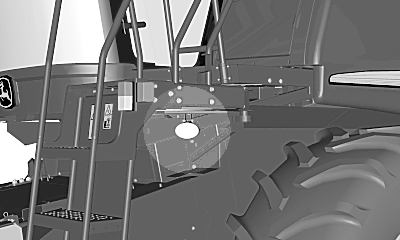

Stubble Lights

Stubble lights provide lighting behind the header and in front of the header for night operation and low light conditions.

Stubble lights are attached to the left-hand and right-hand side ladder landing.

OUO6075,0004084 -19-29SEP05-3/3
