Work Lights

CAUTION: NEVER operate rear residue discharge lights when transporting combine on roadway. Clear bright lights at rear of machine could confuse drivers of other vehicles as they approach from rear.

The three position Work light switch controls the stubble lights and rear discharge lights.

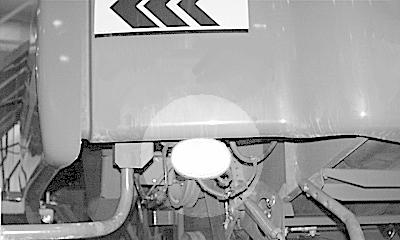

Stubble lights provide the operator with area lighting behind the header for night operation and low light conditions.

Rear discharge lights provide the operator with rear area lighting for night operation and low light conditions. These lights also help the operator to see what is behind the combine when backing up at night.

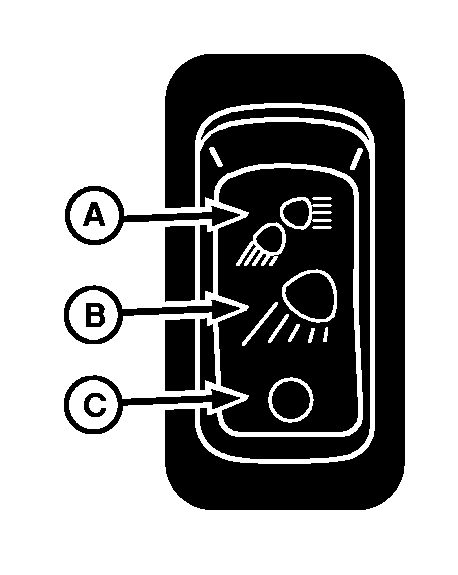

When Work light switch is in bottom position lights are turned OFF, when switch is in middle position stubble lights and turned ON, and when switch is in top position both rear and stubble lights are turned ON.

A-Stubble/Rear Discharge Lights, ON
B-Stubble Lights, ON
C-Work Lights, OFF

OUO6075,0004085 -19-29SEP05-1/1
