Engine Compartment Service Lights
|
| ||
|
|
|
|
|
|
|

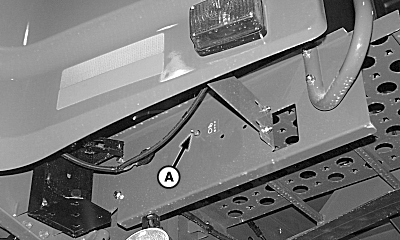

Engine compartment work lights provide additional lighting for the engine area. Engine compartment light switch (A) is located on the right-hand rear side of the machine under the engine |

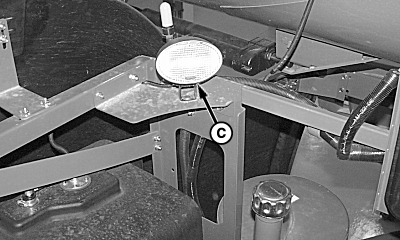

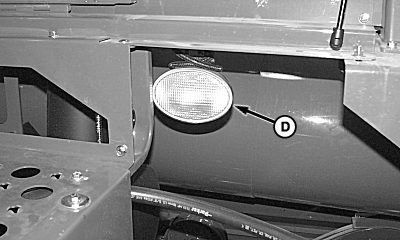

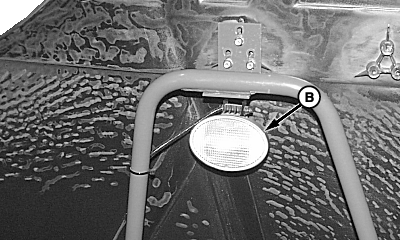

access ladder. This switch controls the engine compartment door light (B), and lights (C) and (D) located in the engine compartment area. |
OUO6075,0004086 -19-31AUG05-1/1 |
