Attaching And Detaching Header from Feeder House

CAUTION: Do not leave drive shafts on combine. Personal injury or machine damage may occur if feeder house is accidentally engaged.

IMPORTANT: Drive shafts with U-joints are used on the left-hand and right-hand sides of all approved headers.

NOTE: For complete attaching and detaching procedures refer to the header Operator's Manual.

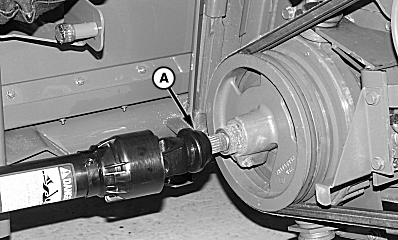

Disconnect telescoping drive shaft from feeder house at the quick disconnect coupler (A) on left and right sides.

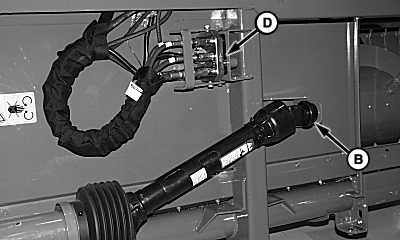

Place telescoping drive shaft in storage position (B).

IMPORTANT: Latch pins are not to be actuated with header on the ground. If multi-coupler must be actuated with header on ground, unhook cable from handle.

NOTE: Latch pins should be fully retracted when handle is all the way up against the stop. Adjust cable mounting if latch pins are not fully retracted (see Single Point Latching-Adjusting).

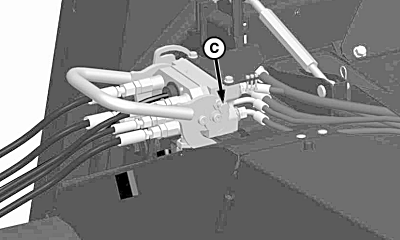

Pull and hold button lock (C) to release lock while raising handle to disconnect multi-coupler.

Remove multi-coupler cover from storage position on header and place cover on combine multi-coupler.

Place and lock multi-coupler in storage position (D).

A-Quick Disconnect Coupler
B-Storage Position
C-Button Lock
D-Multi-Coupler Storage Position

OUO6075,000408B -19-01SEP05-1/1
