Cleaning Shoe Access

causym CAUTION: Shut OFF engine, set parking brake and remove key.

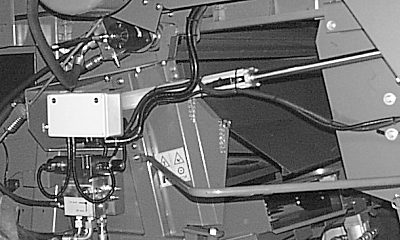

Move chopper to drop straw position (see Moving Chopper to Drop Straw Position in this section.)

H84843

Drop Straw Position

OUO6075,0004091 -19-02NOV05-1/2

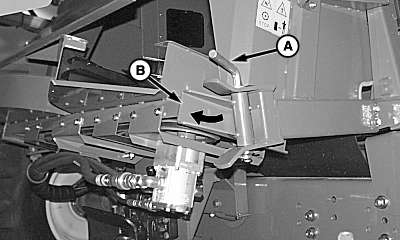

Remove pin (A) on right side and swing chaff spreader (B) to access or service cleaning shoe.


A-Pin
B-Chaff Spreader
