Guide Plate-Removing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

Move chopper to drop straw position (see Moving Chopper to Drop Straw Position in this section.)

H84843

Drop Straw Position

OUO6075,0004092 -19-02NOV05-1/2

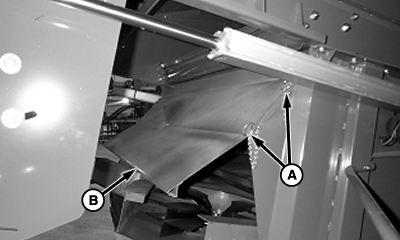

Remove pins (A) on both sides and remove guide plate (B).


A-Pins
B-Guide Plate

H83829
