Chaff Spreader-Removing

CAUTION: Shut OFF engine, set parking brake and remove key.

Move chopper to drop straw position (see Moving Chopper to Drop Straw Position in this section.)

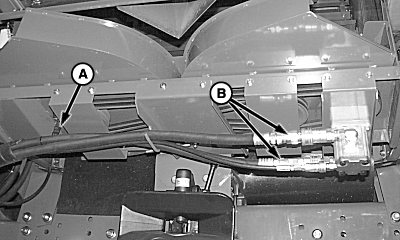

Disconnect electrical connector (A).

Disconnect hydraulic hoses (B) from chaff spreader and connect together.

IMPORTANT: Connect hydraulic hoses together to prevent pump damage.

A-Electrical Connector
B-Hydraulic Hoses

OUO6075,0004093 -19-02NOV05-1/1
