Roof Vane-Adjusting

causym CAUTION: Shut OFF engine, set parking brake and remove key.

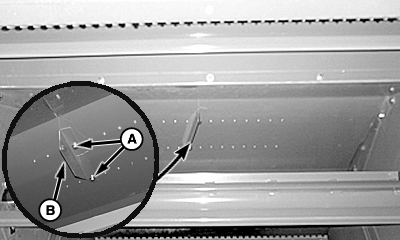

If crop material does not flow evenly into the chopper, remove cap screws (A) and adjust roof vane (B) as desired depending on the crop being harvested.


A-Cap Screws
B-Roof Vane

H84877

Roof Vane Normal Position

OUO6075,0004095 -19-04NOV05-1/1
