Discharge Beater Vanes-Adjusting

causym CAUTION: Shut OFF engine, set parking brake and remove key.

If chopper is consistently discharging heavy material to the right-hand side, remove cap screw (A) and right-hand discharge beater grate vane (B).

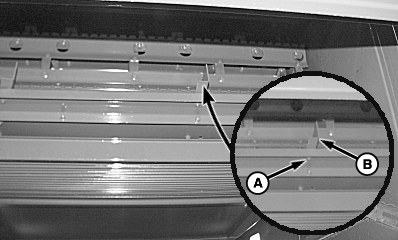

A-Cap Screw
B-Discharge Beater Grate Vane

H84876

Discharge Beater Grate Vanes

OUO6075,0004096 -19-04NOV05-1/1
