Chopper Vanes For Different Header Widths-Changing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: This procedure will show what is needed when changing from a 9.1 m (30 ft.) header to a 7.6 m (25 ft.) header.

If spread width is to wide and/or is spread pattern is uneven, it is possible to replace four chopper vanes on the tailboard. These four additional chopper vanes will need to be ordered, see your John Deere dealer.

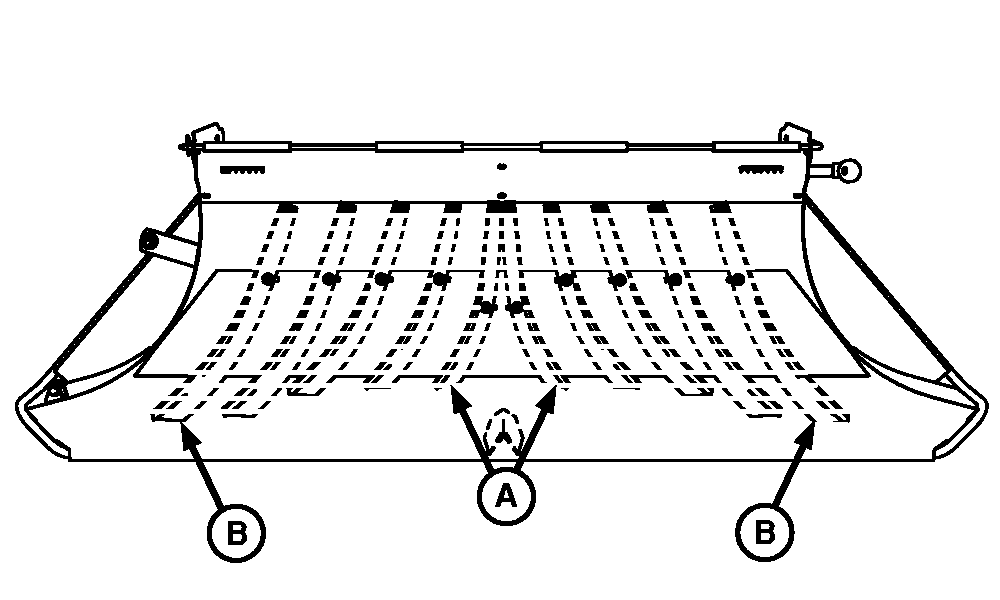

Remove inside chopper vanes (A) and outside chopper vanes (B).

H84377


A-Inside Vanes
B-Outside Vanes

OUO6075,0004098 -19-02NOV05-1/4

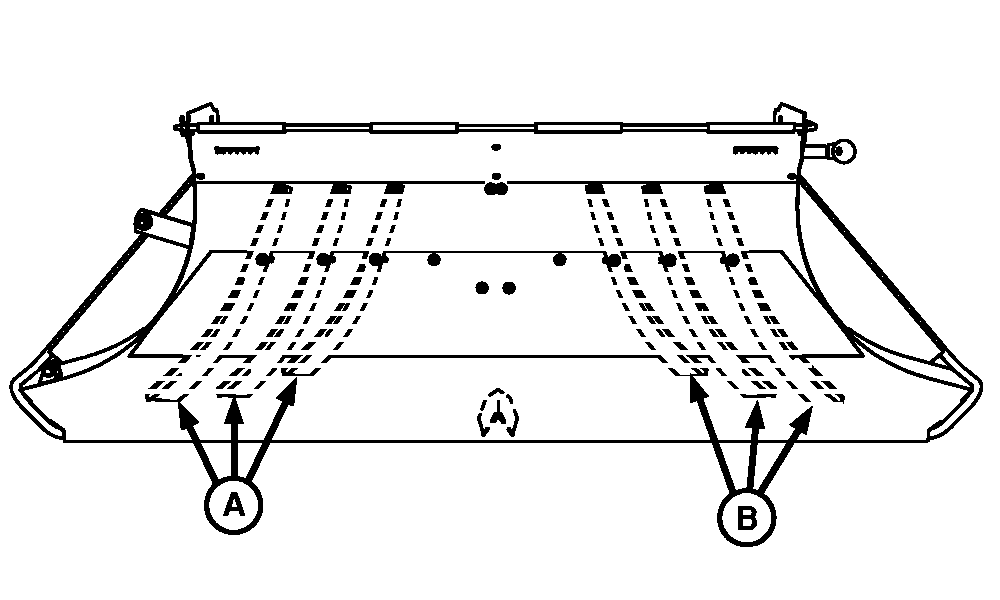

Move left-hand chopper vanes (A) outward one hole and move right-hand chopper vanes (B) outward one hole.


A-Left-Hand Chopper Vanes
B-Right-Hand Chopper Vanes

H84378

OUO6075,0004098 -19-02NOV05-2/4

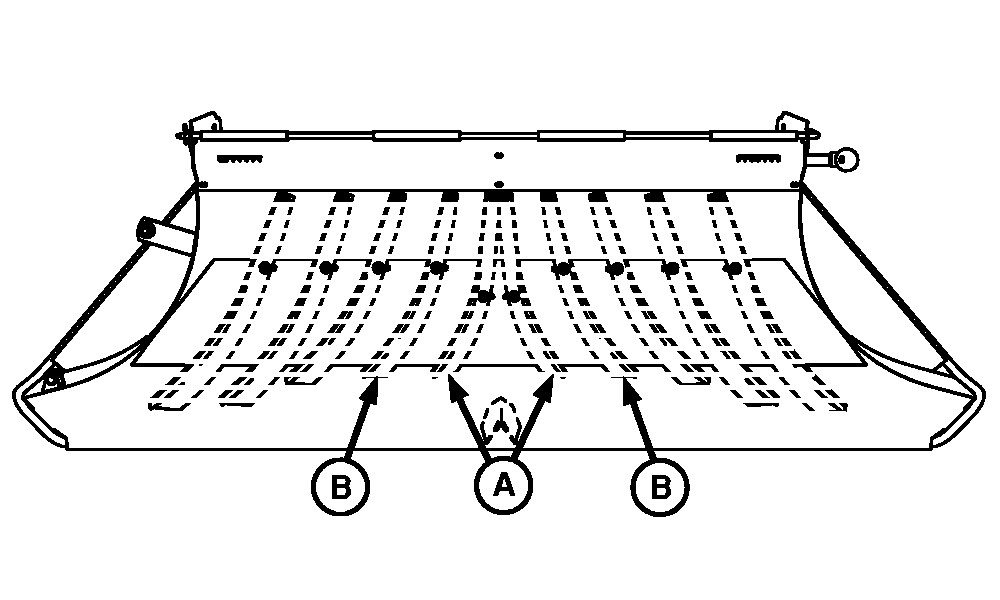

Install inner vanes (A) and outer vanes (B) from kit (see your John Deere dealer).


A-Inner Vanes
B-Outer Vanes

H84379

OUO6075,0004098 -19-02NOV05-3/4

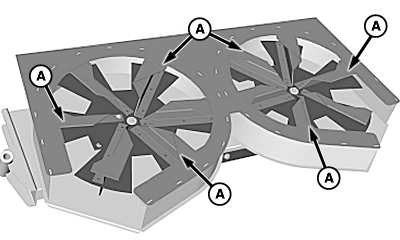

Remove every other spreader vanes (A) as shown.


A-Spreader Vanes

H83842
