Chopper Drive Belt-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

IMPORTANT: To prevent belt damage, do not over tighten upper and lower spring tensioner.

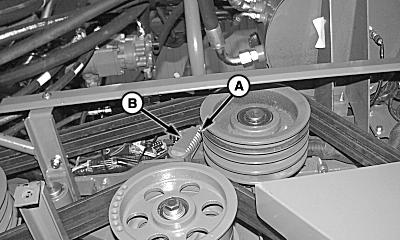

Upper Spring Tensioner:

Tighten nut until washer (A) aligns with end of gauge (B).

A-Washer
B-Gauge

OUO6075,0004099 -19-02NOV05-1/2

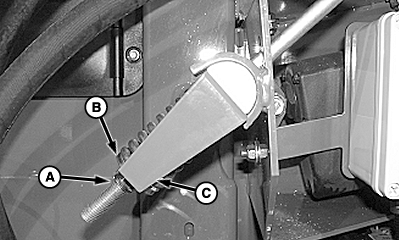

Lower Spring Tensioner:

Tighten nut (A) until washer (B) aligns with end of gauge (C).

A-Nut
B-Washer
C-Gauge

OUO6075,0004099 -19-02NOV05-2/2
