OMH222883: 9880i STS Combine(9880i STS 715701- ), Block File: OUO6075_000409C_19

causym CAUTION: Shut OFF engine, set parking brake and remove key.

Low Speed: Turn hex head screw (A) counterclockwise to increase chaff spreader speed.

High Speed: Turn hex head screw (B) counterclockwise to increase chaff spreader speed.

NOTE: When chopping material, chaff spreader speed is not adjustable.

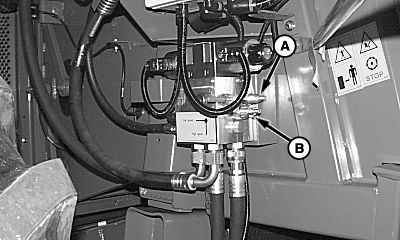

Chaff Spreader Hydraulic Valve

A-Hex Head Screw (Maize Low Speed)
B-Hex Head Screw (Windrow)

OUO6075,000409C -19-02NOV05-1/1
