Stationary Knifebank Blades-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

Chopper blades are sharp.

NOTE: Worn blades increase power consumption and chopper quality is reduced.

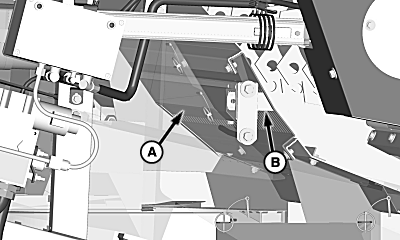

Remove locking plate (A).

Remove and replace blades on counter blade bar (B).

Install locking plate.

A-Locking Plate
B-Counter Blade Bar

OUO6075,000409E -19-03NOV05-1/1
