Chopper Belt-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

Disengage claw clutch on chopper and move chopper to middle position.

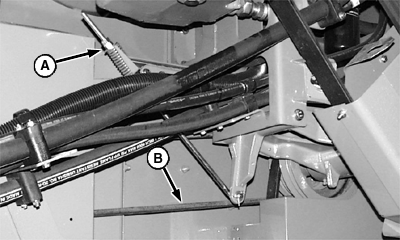

Remove tension on discharge beater drive belt idler (A). Remove belt (B) from chopper drive jackshaft sheave to allow removal of chopper belt.

A-Drive Belt Idler
B-Discharge Beater Belt

OUO6075,000409F -19-03NOV05-1/6

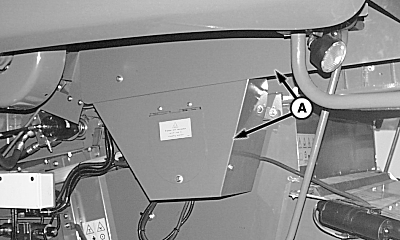

Remove and retain shields (A).

A-Shields

OUO6075,000409F -19-03NOV05-2/6

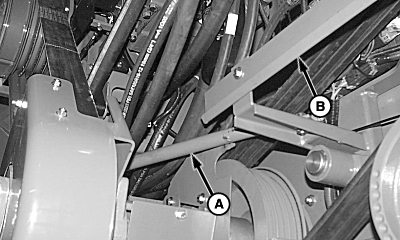

Remove and retain jackshaft support (A) and shield bracket (B).

Remove and replace chopper belt.

A-Jackshaft Support
B-Shield Bracket

OUO6075,000409F -19-03NOV05-3/6

Install jackshaft support (A) and shield bracket (B).

A-Jackshaft Support
B-Shield Bracket

OUO6075,000409F -19-03NOV05-4/6

Install shields (A).

A-Shields

OUO6075,000409F -19-03NOV05-5/6

Install discharge beater belt (B) and adjust tension on drive belt idler (A). Tighten tensioner until gauge aligns with washer.

A-Drive Belt Idler
B-Discharge Beater Belt

OUO6075,000409F -19-03NOV05-6/6
