Transmission, Final Drives, Feeder House Reverser, Loading Auger, Primary Countershaft and Two-Speed Separator Drive Gear Cases

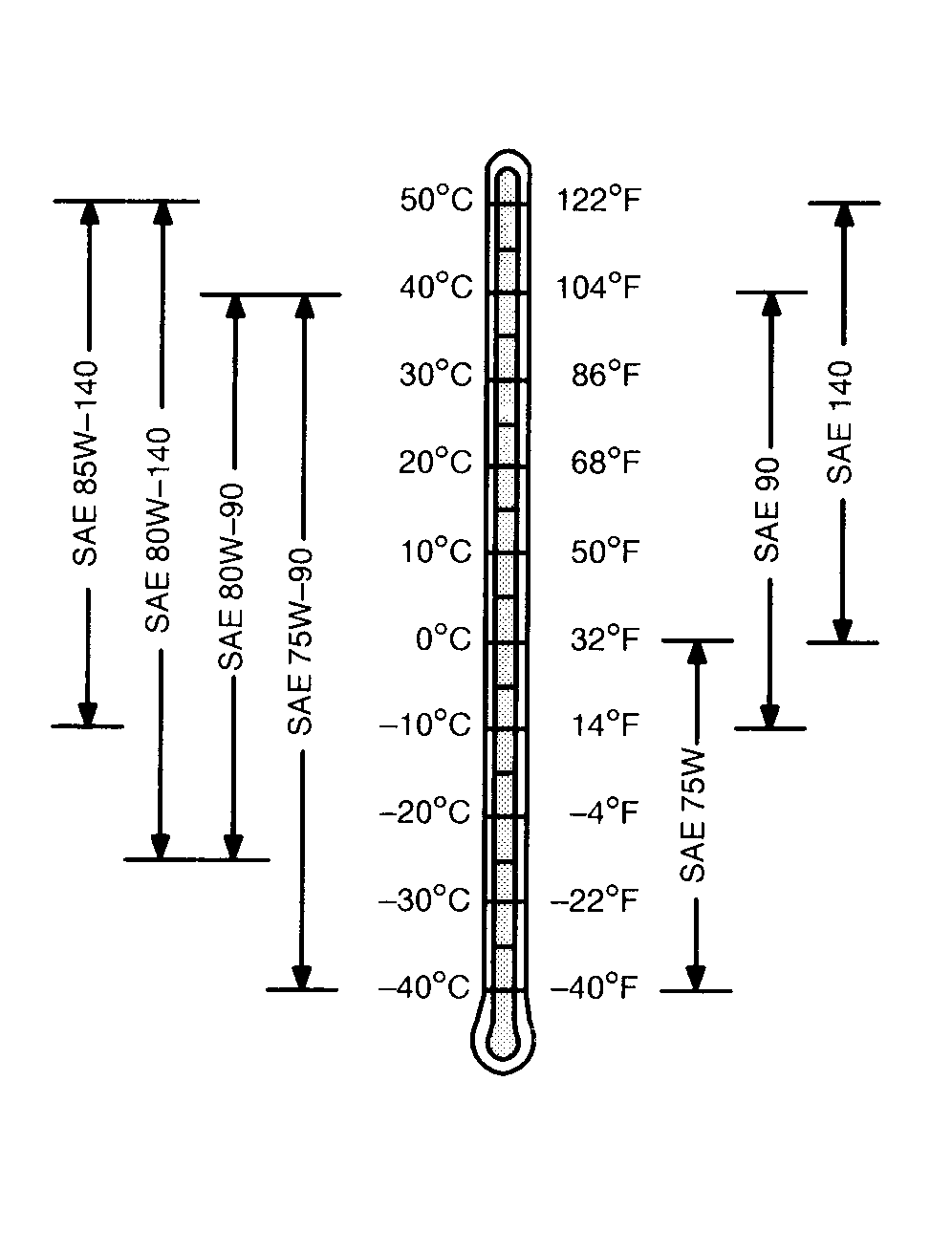

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere GL-5 GEAR LUBRICANT
  • John Deere EXTREME-GARD ™

Other oils may be used if they meet API Service Classification GL-5.

Product Number Description Size Pkg. Qty.
TY6252 80W/90 GL5 Gear Lube 16 kg pail
(35 lb. pail)		 1
TY6296 80W/90 GL5 Gear Lube 0.9L (1 qt.) can 12
TY6256 85W/140 GL5 Gear Lube 16 kg pail
(35 lb. pail)		 1
TY6345 85W/140 GL5 Gear Lube 0.9L (1 qt.) can 12


TS1653

EXTREME-GARD is a trademark of Deere & Company.

OUO6075,00040AF -19-17AUG05-1/1
