A-Unload Auger ON
B-Low Fuel
C-Park Brake ON
D-Main Gear Case Filter
E-Main Gear Case Temperature
F-Hydraulic Oil Temperature
G-Voltage

H-Engine Air Filter
I-Thresher Load
J-Maximum Tilt (Not Used)
K-Premium Straw Chopper Slow Speed (Optional)
L-Grain Tank Covers
M-Grain Tank Full
N-Grain Tank 3/4 Full

O-Hydrostatic Charge Pressure
P-Main Gear Case Pressure
Q-Engine Temperature
R-Engine Oil Pressure
S-High Beam ON
T-Feed Accelerator

U-Straw Chopper
V-Discharge Beater
W-Auger Conveyor
X-Grain Elevator
Y-Tailings Elevator
Z-Threshing Speed
AA-Engine Speed

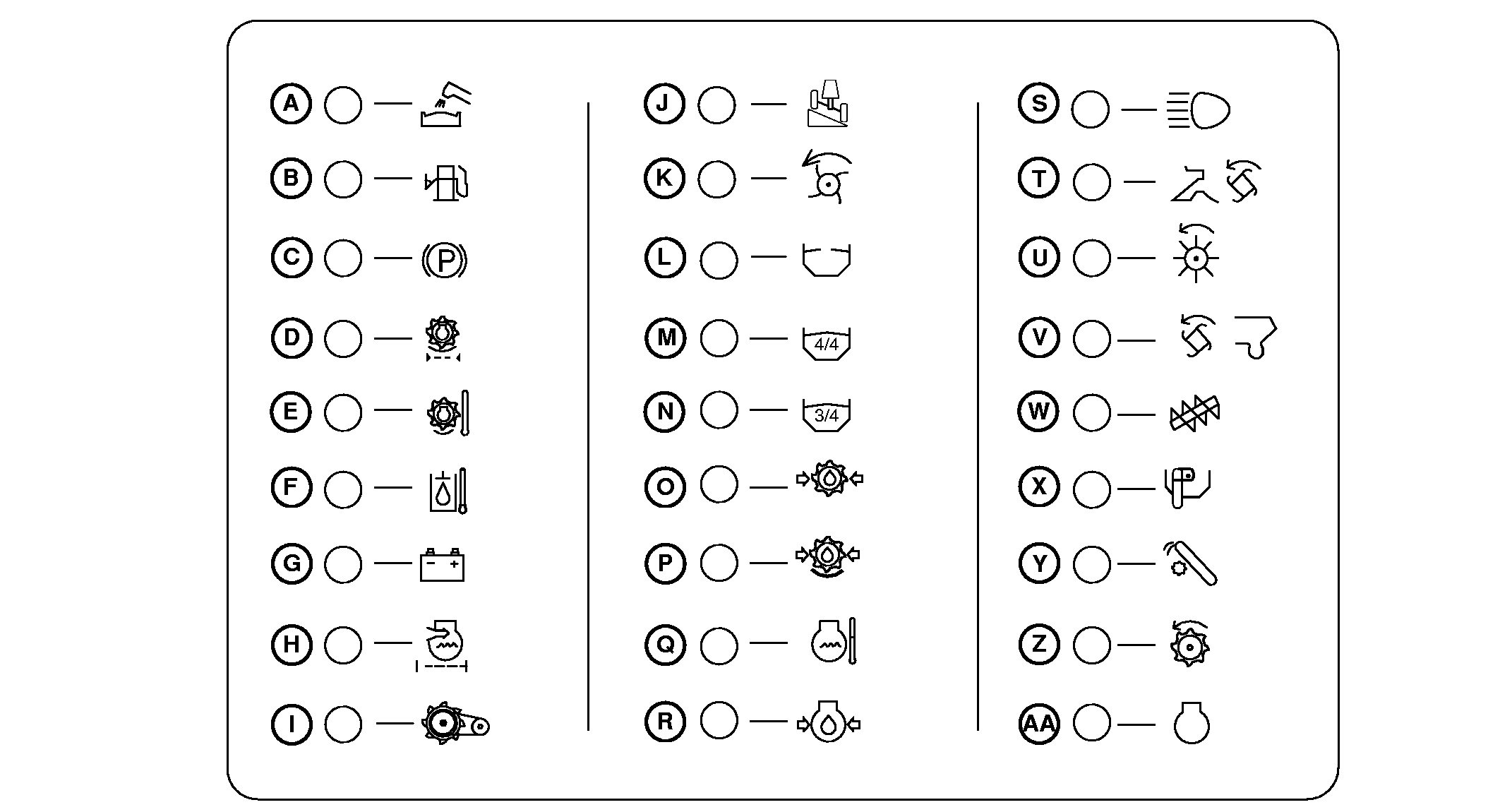

These lights monitor the most important combine functions (road and operating safety, engine).

Overhead warning display panel shows a red, yellow or green light and sounds a buzzer for the following conditions:

Priority 1: Red warning light with acoustical warning signal-Stop engine at once and correct problem.

Priority 2: Yellow warning light with acoustical warning signal-Service or correct problem. Stop engine as required.

Priority 3: Green warning light with acoustical warning signal-Be aware of condition.

NOTE: Warning lights dim at night when field or road lights are turned ON.

When key is in start position, all lights on the overhead warning display panel will come ON.
