INFO - View Menu - Field Totals

To view "Field Totals", "Crop Totals", or "Custom Names" press letter button next to View on INFO - Harvest Mon screen and INFO - View Menu screen will appear.

Press letter button next to "Field Totals".

This screen displays data recorded from a particular field.

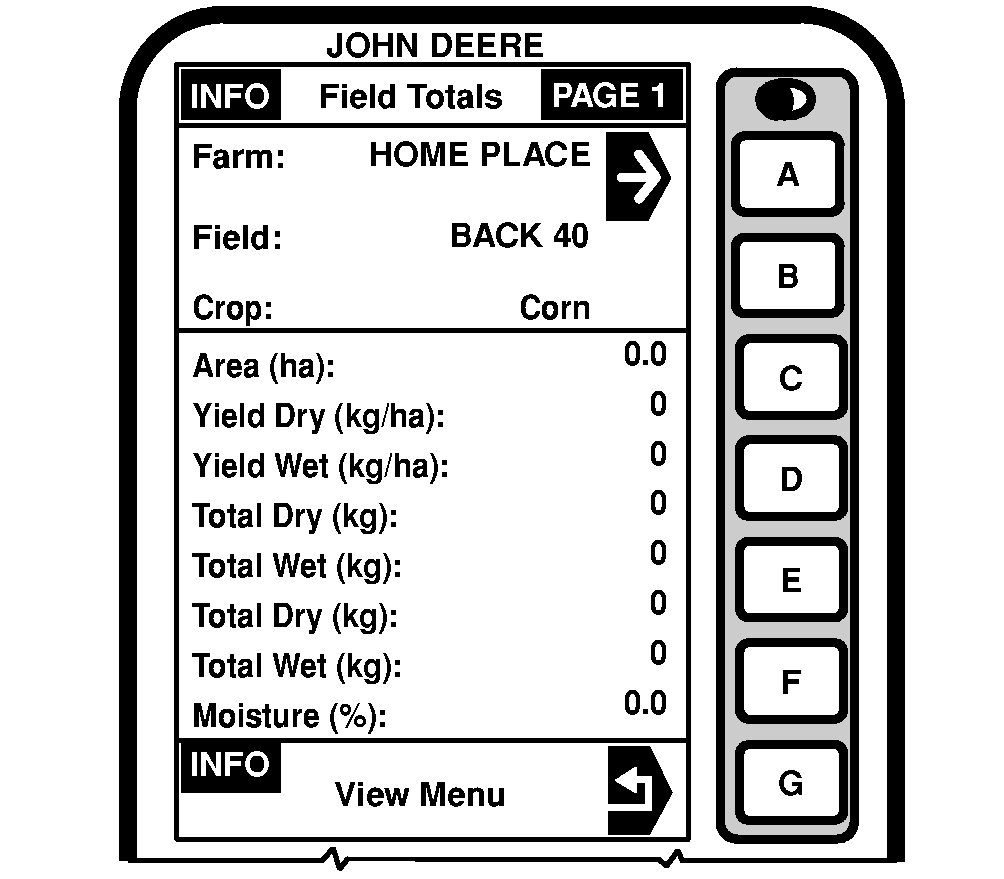

The field selected in SETUP - Harv Mon - PAGE 1 is displayed along with all of its harvest information as shown in the sample display.

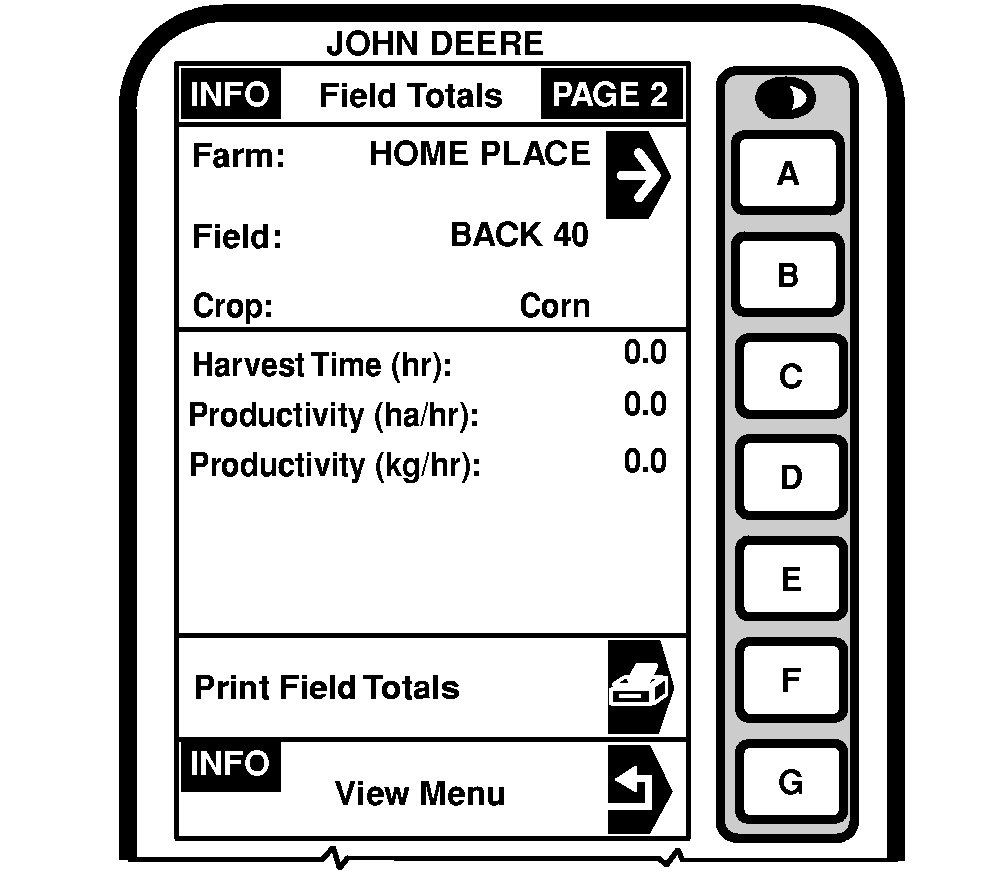

On INFO - Field Totals - PAGE 2, if a printer is available, by pressing letter button next to "Print Field Totals" the user is able to print out displayed field totals.

NOTE: The printer may need to be installed then switched on. Once print out is over, successively press on ejection button to sufficiently roll out paper so that it can be torn off far below the printed area.

By pressing letter button next to "Farm/Field/Crop" the user is able to change which "Farm/Field/Crop" totals to view without changing what "Farm/Field/Crop" were selected under SETUP - Harv Monitor.

OUZXMAG,0001D6E -19-02SEP04-1/1
