Grain Tank Cross Auger Covers

CAUTION: Shut OFF engine, set parking brake and remove key.

IMPORTANT: If these covers are raised too far in edible beans, auger drive shear bolt may break repeatedly, or damage could occur to augers or grain tank.

Normal Position:

Adjust auger covers down to slow unloading rate. Also adjust auger cover down in edible beans.

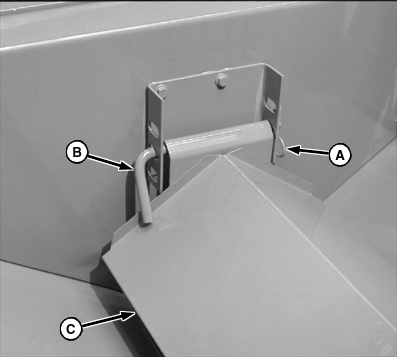

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and re-install pins and lock pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Covers should be set to the top position for all other crops.

A-Locking Pins
B-Pins
C-Auger Cover
