Field Lights

The field lights provide the operator with area lighting for operation at night and during low light conditions.

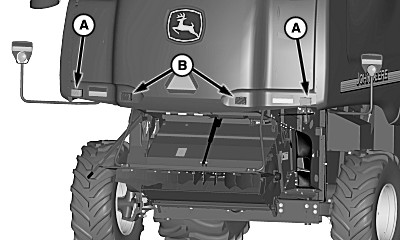

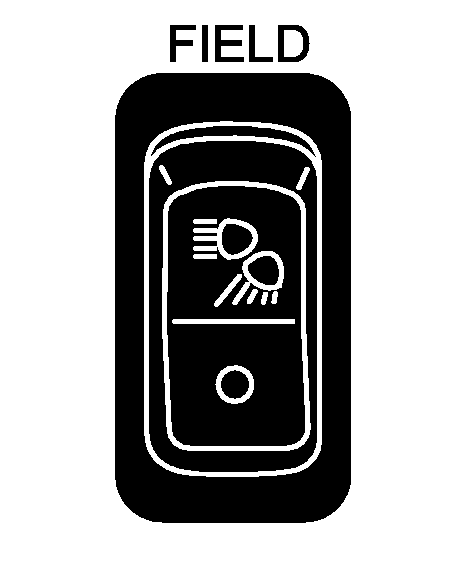

Field light switch controls the warning lights (A), tail lights (B) and field lights (C). The field light switch is a two position switch (ON or OFF).

A-Warning Lights
B-Tail Lights

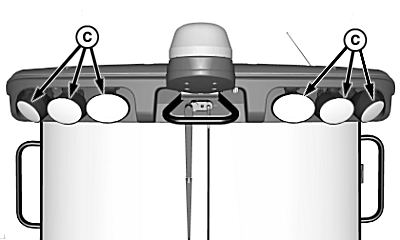

C-Field Lights

OUO6075,00002FA -19-27MAR06-1/2

The field light switch is used to control the grain tank light (A), side finder light (B) (with turn signal lever), and unloading auger light (C).

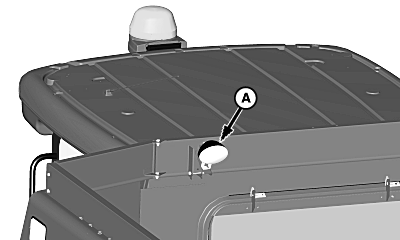

A-Grain Tank Light

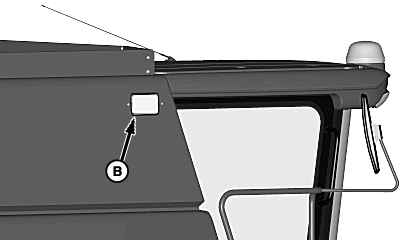

B-Side Finder Light

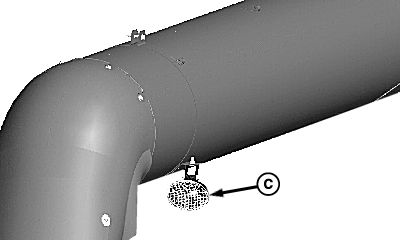

C-Unloading Auger Light

OUO6075,00002FA -19-27MAR06-2/2
