Discharge Beater Belt-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

Loosen lock nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step.

Tighten lock nut.

NOTE: This also adjusts chopper jackshaft drive belt tension.

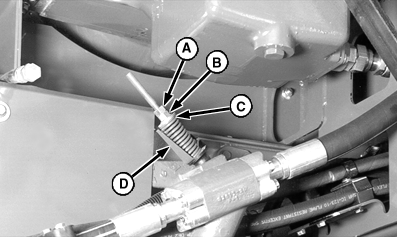

A-Lock Nut
B-Nut
C-Washer
D-Gauge
