Chaffer/Sieve Elements-Remove And Install
NOTE: It is not necessary to remove the straw chopper (if equipped) to remove chaffer/sieve elements. Chopper must be in fully raised position. 1. If equipped with straw chopper, remove cap screws (A) and air chutes (B) from both sides. |
|
CAUTION:
Shut OFF engine, set parking brake and remove key to help prevent accidental starting and personal injury.
OUO6075,0000314 -19-22MAR06-1/9 |
|
2.
Raise spreader (if equipped) and remove pins (B).
3. Remove spreader disks (A).
|
|
OUO6075,0000314 -19-22MAR06-2/9 |
|
4.

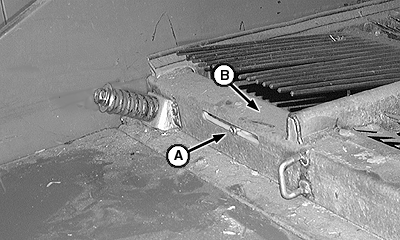

Loosen gauge adjustment screw (A) in chaffer/sieve element (B).
|
|
OUO6075,0000314 -19-22MAR06-3/9 |
|
5.

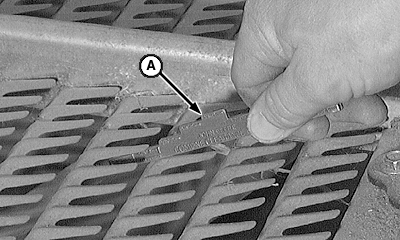

Slide chaffer/sieve opening gauge (A) inside chaffer/sieve element.
|
|
OUO6075,0000314 -19-22MAR06-4/9 |
|
6.

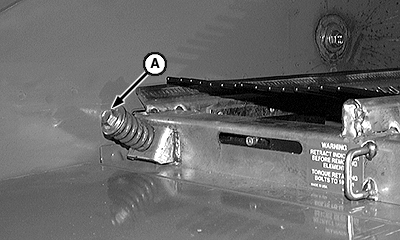

Remove chaffer/sieve retaining bolts (A) and springs from both sides.
7. Slide chaffer/sieve element out rear of machine. 8. Inspect grain seals on chaffer/sieve element and repair or replace as needed. 9. Install chaffer/sieve element in rear of machine. 10. Install chaffer/sieve retaining bolt assembly (A) on both sides and tighten to specification. Specification
|
|
OUO6075,0000314 -19-22MAR06-5/9 |
|
11.

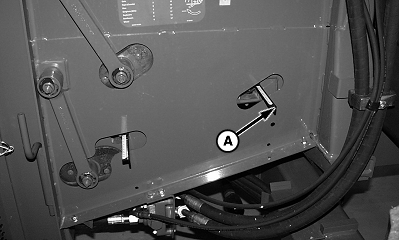

Slide chaffer/sieve opening gauge (A) through sidesheet.
|
|
OUO6075,0000314 -19-22MAR06-6/9 |
|
12.
Calibrate opening gauge to proper dimension.

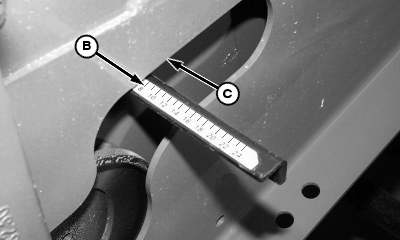

a. Crank chaffer/sieve to full open position. b. Close slowly until average opening measures approximately 8 mm (5/16 in.) with clearance gauge (A). c. Slide chaffer/sieve opening gauge (B) to read 8 mm at sidesheet (C).
|
|
OUO6075,0000314 -19-22MAR06-7/9 |
|
d. Tighten gauge adjustment screw (A) in chaffer/sieve element (B).
|
|
OUO6075,0000314 -19-22MAR06-8/9 |
|
13.
If equipped with straw chopper, install air chutes (B) with cap screws (A) on both sides.
14. Install spreader disks and lower straw spreader.
|
|
