Driving the Combine on Roads

causym CAUTION: Swing ladder to the full forward position to reduce combine width and to orient warning light toward oncoming motorists.

IMPORTANT: Travel at a reasonable speed for road or field conditions. Never transport on the road with grain in the tank. Always use warning lights.

Follow local regulations for equipment size, lighting and marking before driving on public roadways.

NOTE: For machines with long 1390 mm (55 in) ladder extension the ladder can not be positioned in the full forward position. A transport position 9° out from full forward has been provided. (See Cab Ladder Positions).

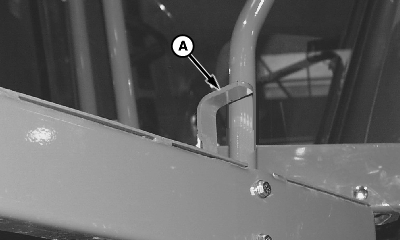

1. Use lever (A) to unlock ladder and swing to the full forward position.

2. Fold radio antenna down.

H72668


A-Lever

OUO6075,0000322 -19-23MAR06-1/6

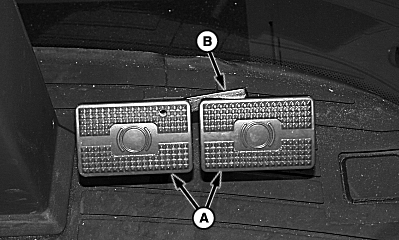

3. Lock brake pedals together with lock (B) when driving on roads. Leave pedals (A) unlocked for field operation.

causym CAUTION: Use the seat belt whenever you operate the combine or ride as an observer.

4. Fasten seat belt.

causym CAUTION: Sound horn before starting engine to clear people away from the combine.

5. Sound horn and start engine.

H68175


A-Pedals
B-Lock

OUO6075,0000322 -19-23MAR06-2/6

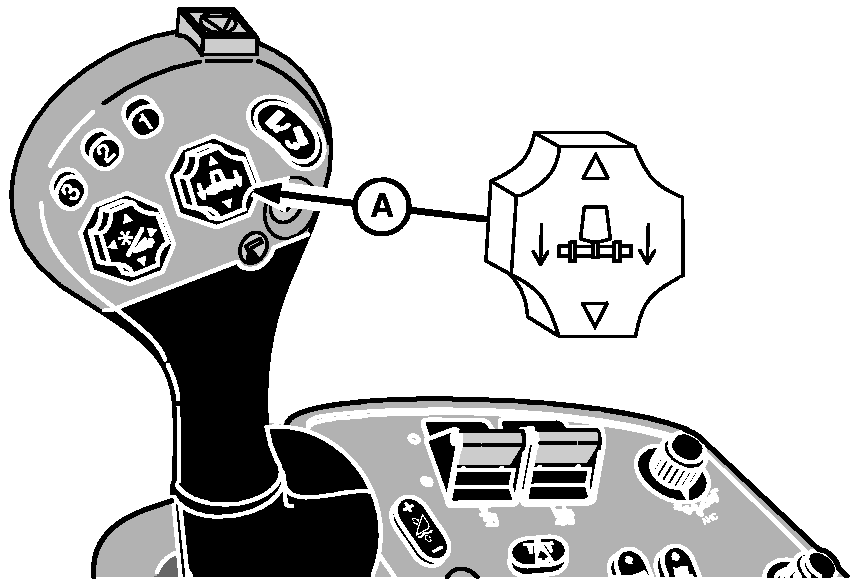

6. Raise header with header switch (A).

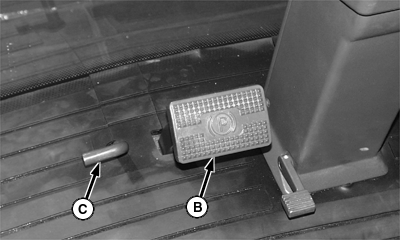

7. Disengage manual parking brake (B) with pedal (C).


A-Header Raise/Lower Switch
B-Manual Parking Brake
C-Pedal

H74757
H61170

OUO6075,0000322 -19-23MAR06-3/6

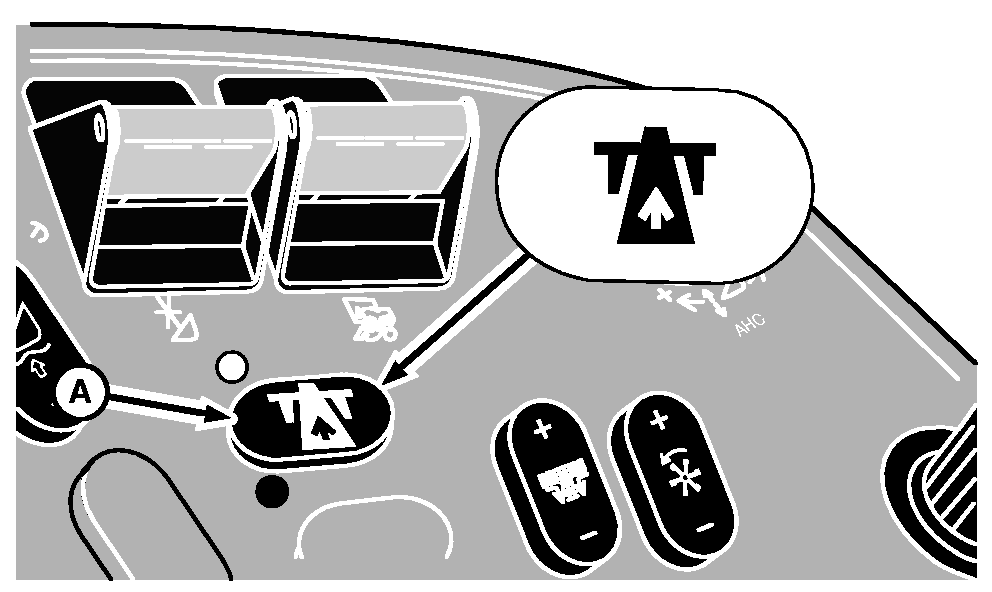

8. Engage road transport disconnect switch (A).


A-Road Transport Disconnect Switch

H74718

OUO6075,0000322 -19-23MAR06-4/6

causym CAUTION: When transporting on a road or highway, flashing warning lights and taillights on both sides provide a warning to operators of vehicles approaching from the front and rear. These warning lights must be turned ON when driving the combine on a public road. Swing cab ladder fully forward as possible in order to orient warning light towards oncoming motorists. Do not operate flashing warning lights if prohibited by law.

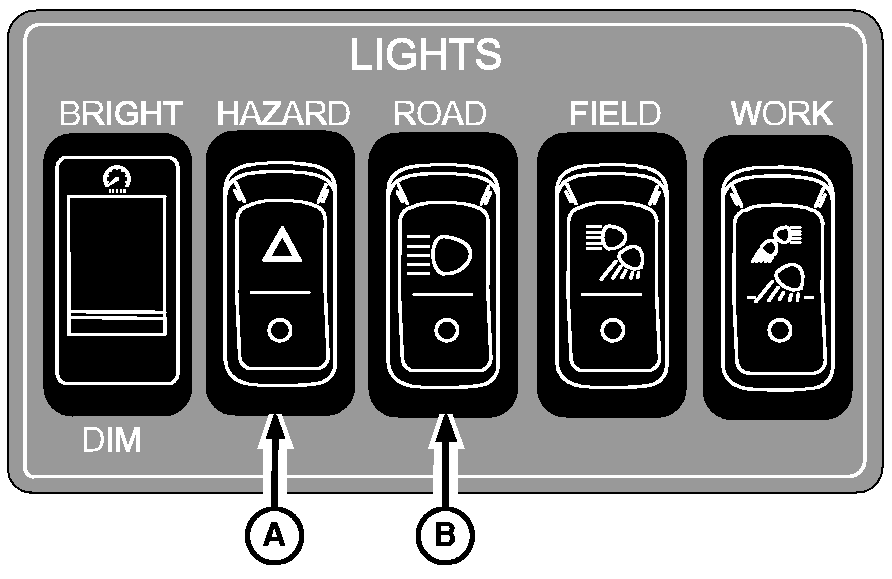

9. Turn hazard light switch (A) ON for both daytime and nighttime road travel. Turn ON road lights (B) for nighttime travel. Warning lights automatically operate when the hazard lights are ON.

NOTE: Turn signal lights on steering column burn steadily to indicate a turn.

10. Use turn signals as needed. They are not self cancelling.

H52681


A-Hazard Light Switch
B-Road Light Switch

OUO6075,0000322 -19-23MAR06-5/6

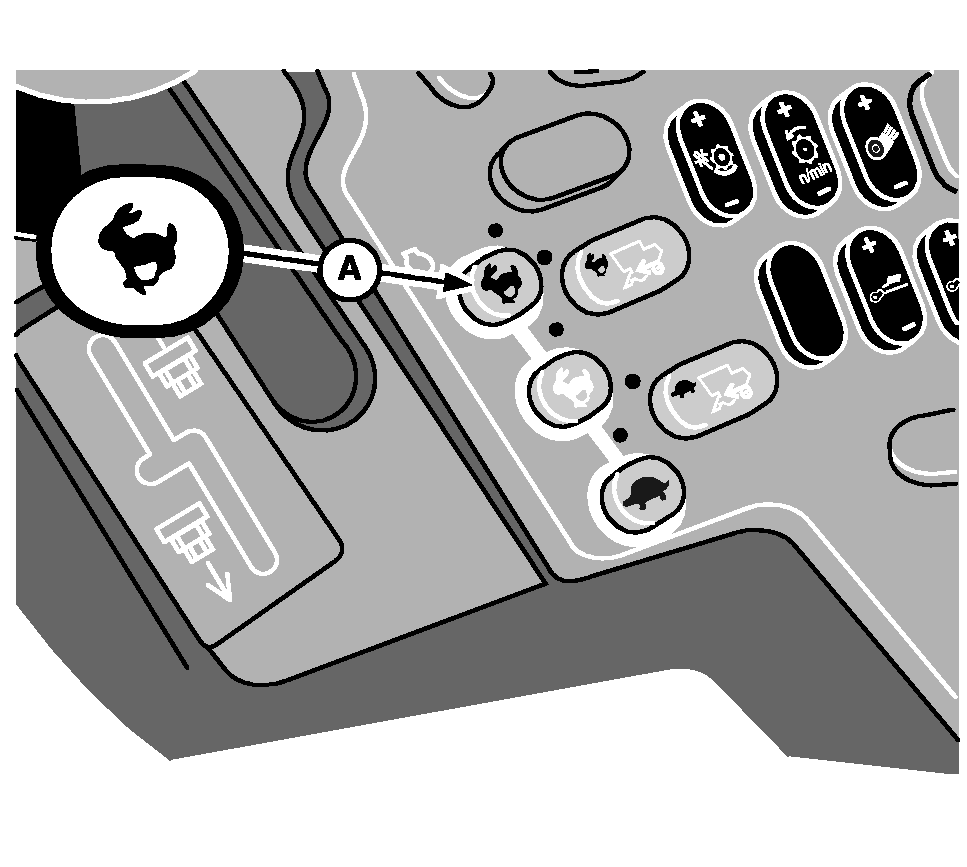

11. Press engine speed switch (A) for maximum engine speed.

NOTE: For field operation, select a gear according to working conditions.

12. Engage 3rd gear for road travel.

causym CAUTION: If a 1243 or 1293 Corn Head is attached, never transport combine faster than 13 km/h (8 mph) to assure adequate braking performance and control.

13. Shift gears and slowly move multifunction control handle forward or rearward. When coming to the top of a hill, pull back on the multifunction control handle before starting down the other side.


A-Engine Speed Switch

H74759
