OUO6075,0000333 -19-29MAR06-1/2

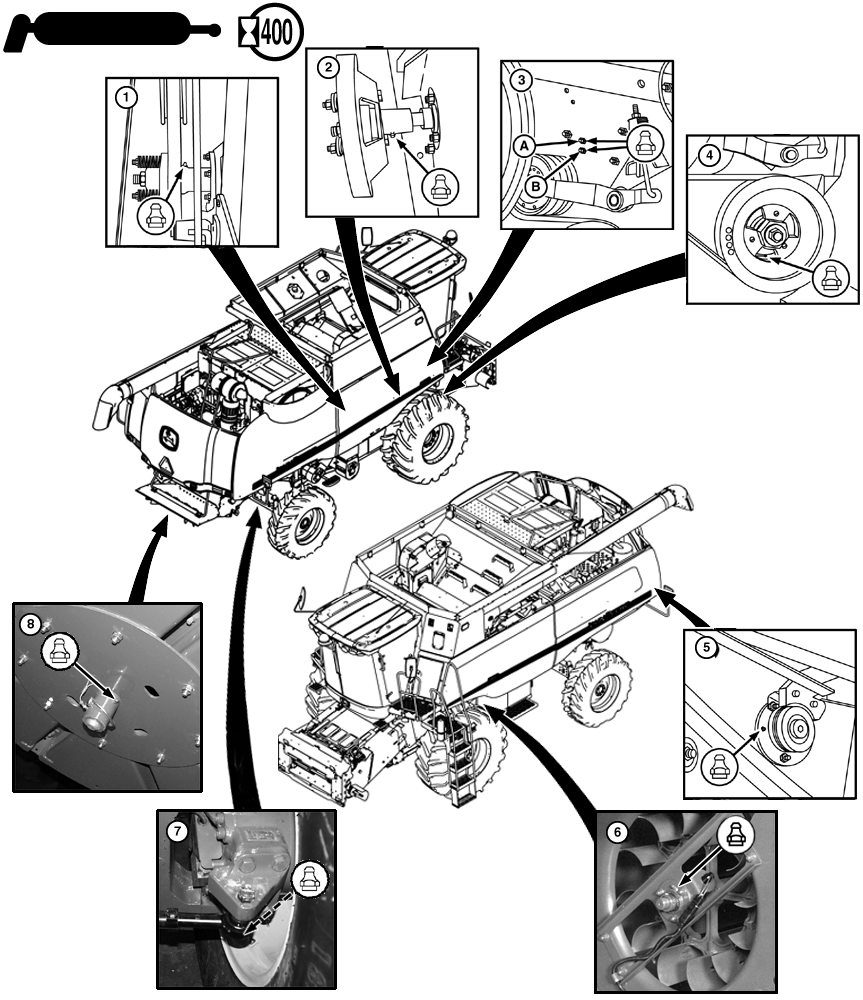

2. Conveyor Auger Drive Slip Clutch - Rotate sheave assembly to access fitting. Do not over grease.

3. Right-Hand Side Lube Bank - Grease fittings to lubricate primary countershaft bearing (A) and Single Tine Separator bearing (B).

4. Feed Accelerator Bearing - Rotate sheaves to access fitting.

5. Discharge Beater Bearing - Grease fitting (both sides).

6. Cleaning Fan Shaft Bearings - Grease fitting (both sides).

7. Rear Axle - Grease fitting (both sides) on power steering rod end ball joint.

8. Spreader Disk - Grease fitting (both sides) to prevent hubs from corroding to shafts.

OUO6075,0000333 -19-29MAR06-2/2
