Customize Visible Crop Settings
1.
Customize Crop Settings:
-
Battery is connected
-
Key switch is in ON position
Press diagnostic button. dIA will be displayed.
|
|
|
|
OUO6075,000035A -19-03APR06-1/7
|
|
2.

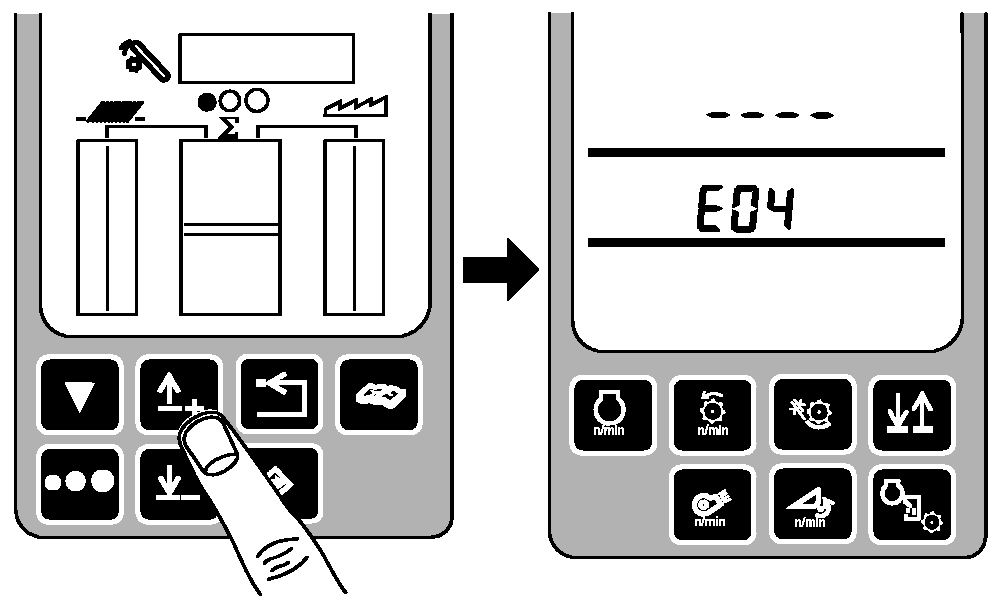

Press up or down arrow button until E04 address appears on display.
|
|
|
|
OUO6075,000035A -19-03APR06-2/7
|
|
|
OUO6075,000035A -19-03APR06-3/7
|
|
4.

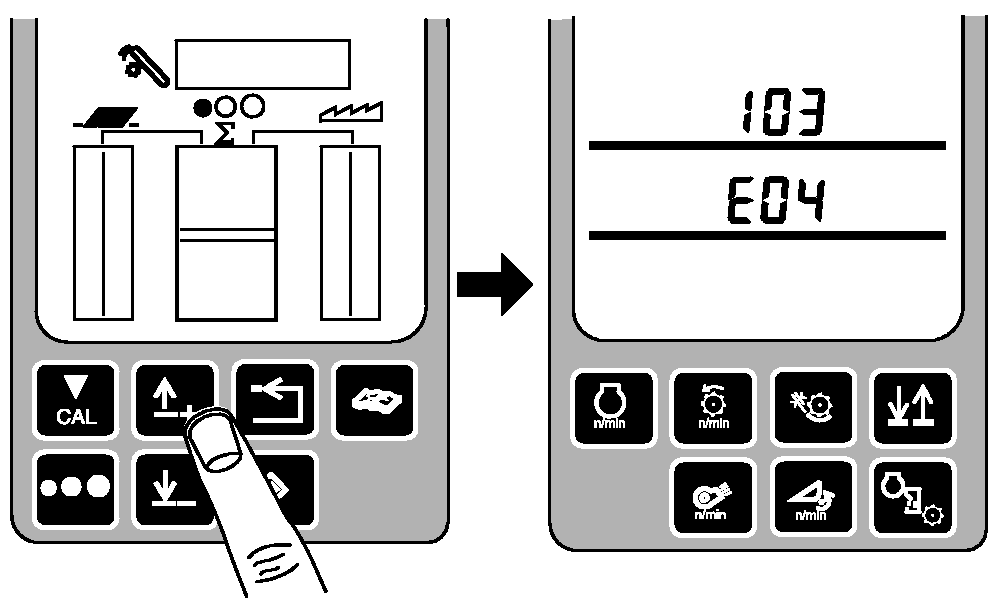

Press up or down arrow button until desired address (103, 104, 105, 106, 107) is displayed. See following table for Address and Crop Type information.
|
|
|
|
OUO6075,000035A -19-03APR06-4/7
|
|
5.

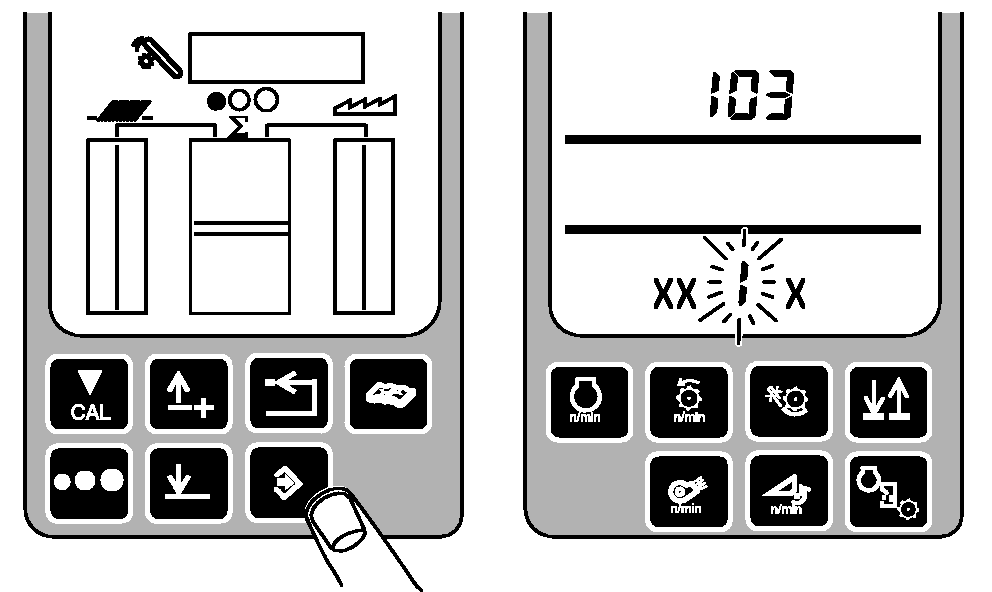

Press enter button. First available digit will begin to flash.
|
|
| Address 103 |
Line 2 |
Line 3 |
Address 104 |
Line 2 |
Line 3 |
Address 105 |
Line 2 |
Line 3 |
| Wheat Normal 1 |
1xxx |
|
Peas 1 |
1xxx |
|
Clean 1 |
1xxx |
|
| Wheat Difficult 1 |
x1xx |
|
Soybeans 1 |
x1xx |
|
Wheat Normal 2 |
x1xx |
|
| Barley 1 |
xx1x |
|
Sunflower 1 |
xx1x |
|
Wheat Difficult 2 |
xx1x |
|
| Rye 1 |
xxx1 |
|
Corn Dry 1 |
xxx1 |
|
Barley 2 |
xxx1 |
|
| Oats 1 |
|
1xxx |
Corn Wet 1 |
|
1xxx |
Rye 2 |
|
1xxx |
| Rape 1 |
|
x1xx |
Rice 1 |
|
x1xx |
Oats 2 |
|
x1xx |
| Grass Seed 1 |
|
xx1x |
Sorghum 1 |
|
xx1x |
Rape 2 |
|
xx1x |
| Linseed 1 |
|
xxx1 |
Lupines 1 |
|
xxx1 |
Grass Seed 2 |
|
xxx1 |
| Address 106 |
Line 2 |
Line 3 |
Address 107 |
Line 2 |
Line 3 |
|
|
|
| Linseed 2 |
1xxx |
|
Lupins 2 |
x1xx |
|
|
|
|
| Peas 2 |
x1xx |
|
Clean 2 |
xx1x |
|
|
|
|
| Soybeans 2 |
xx1x |
|
Crop 1 |
xxx1 |
|
|
|
|
| Sunflower 2 |
xxx1 |
|
Crop 2 |
|
1xxx |
|
|
|
| Corn Dry 2 |
|
1xxx |
Crop 3 |
|
x1xx |
|
|
|
| Corn Wet 2 |
|
x1xx |
Crop 4 |
|
xx1x |
|
|
|
| Rice 2 |
|
xx1x |
Crop 5 |
|
xxx1 |
|
|
|
| Sorghum 2 |
|
xxx1 |
|
|
|
|
|
|
|
6.
Press up or down arrow button to increase or decrease value of flashing digit.
-
1= Crop Visible
-
0= Crop Hidden
7.
When desired value is flashing, press calibration button to move to next digit.
8.
Continue until desired value for address is displayed.
|
|
|
|
OUO6075,000035A -19-03APR06-5/7
|
|
9.

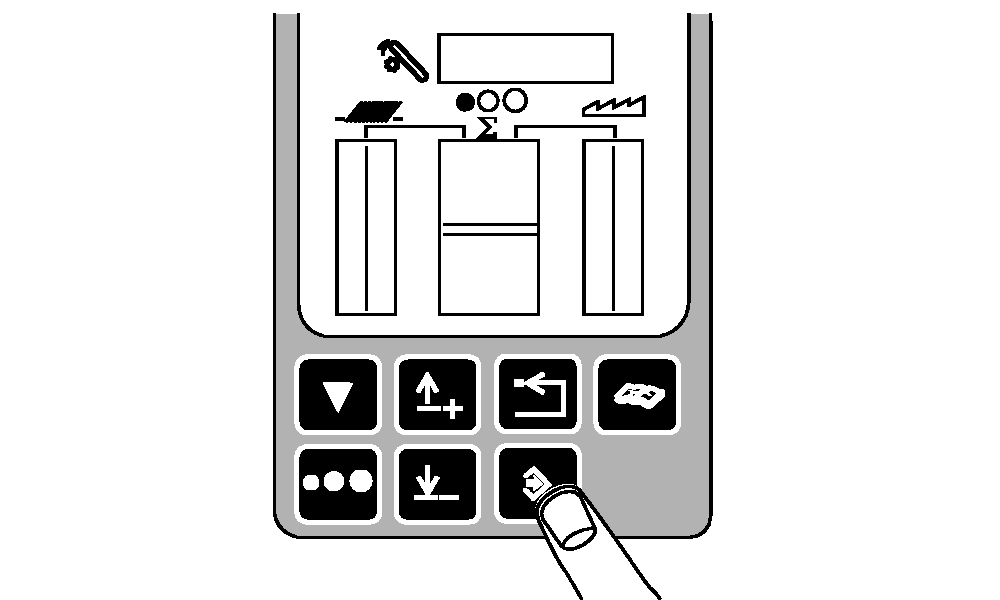

Once desired crops have either been turned ON or OFF, press enter button to enter new value into memory.
|
|
|
|
OUO6075,000035A -19-03APR06-6/7
|
|
10.
Press back arrow button three times to return to normal operation.
|
|
|
|
OUO6075,000035A -19-03APR06-7/7
|
|
