Glow Plug Diagnostic System Fuse

IMPORTANT: Do not replace original fuse with higher rated fuse or mechanical damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

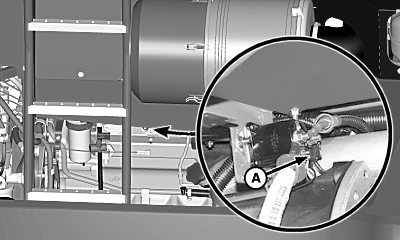

Fuse (A) is located above alternator. This fuse provides protection to the diagnostics system. If fuse is blown, inspect wiring harness on glow plug power circuit for possible damage before replacing fuse. Replace any damaged wiring before operating machine.

A-1 Amp. Fuse

OUO6075,0000360 -19-03APR06-1/1
