Chopper Blade-Centering

CAUTION: Shut OFF engine, set parking brake and remove key. Before performing service or maintenance on raised chopper, use lift actuator to snap lock-out pins into place.

Release latch (A) and lift shield (B) over pins (C).

Remove pin (D) from shield (E) and remove shield from bracket (F).

A-Latch
B-Shield
C-Pins
D-Quick-Lock Pin
E-Shield
F-Bracket

OUO6075,0000391 -19-19APR06-1/6

NOTE: It is not necessary to remove sensor completely.

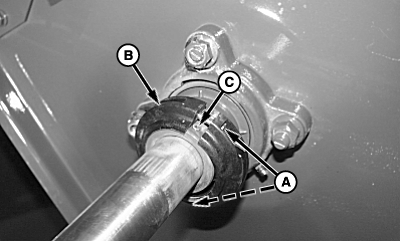

Loosen sensor collar screws (A).

Rotate sensor collar (B) to access inner sensor set screw (C) and loosen set screw.

A-Sensor Collar Screws
B-Sensor
C-Set Screw

OUO6075,0000391 -19-19APR06-2/6

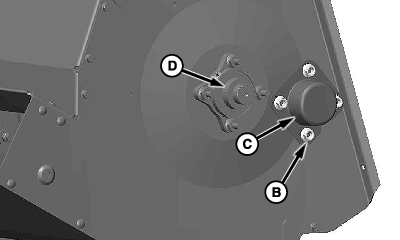

Loosen left-hand side set screw on locking collar (A) and loosen locking collar.

Remove and retain nuts (B) and bearing shield (C).

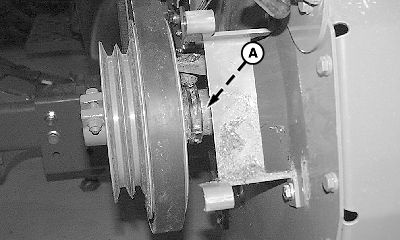

Loosen right-hand side set screw on locking collar (D) and loosen locking collar.

A-Locking Collar (Left-Hand Side)
B-Nuts
C-Bearing Shield
D-Lock Collar (Right-Hand Side)

OUO6075,0000391 -19-19APR06-3/6

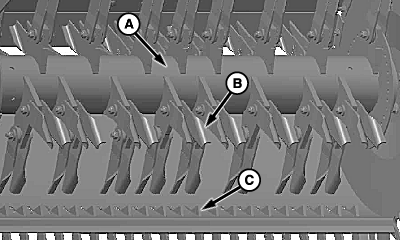

Position chopper rotor (A) to right or left to ensure all rotor blades (B) clear stationary knives (C).

A-Chopper Rotor
B-Rotor Blades
C-Stationary Knives

OUO6075,0000391 -19-19APR06-4/6

Tighten bearing locking collars on both sides in direction of rotation.

Tighten locking collar set screws.

Install bearing shield on right-hand side with nuts.

Position speed sensor (B) collar against bearing locking collar and tighten set screw (C).

Tighten sensor collar screws (A).

A-Sensor Collar Screws
B-Sensor
C-Set Screw

OUO6075,0000391 -19-19APR06-5/6

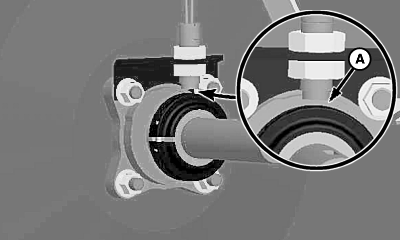

Measure gap (A) between sensor and sensor collar and adjust to specifications as needed.

Specification

Install chopper shields on left-hand side.

A-Sensor Gap

OUO6075,0000391 -19-19APR06-6/6
