Primary Fuel/Water Separator And Secondary Fuel Filter (6.8 L Engine)-Replacement
NOTE: Change primary fuel/water separator filter and secondary fuel filters if performance decline is noticed or if service code ECU/A00 1347.07 is displayed on cornerpost. 1. Start engine and run 3 to 5 minutes at low idle if machine had not been previously operating. 2. Shut OFF engine. 3. Close fuel shut off at bottom of fuel tank. 4. Thoroughly clean exterior of filter elements and filter mounting areas. |
|
CAUTION:
High-pressure fluid remaining in fuel lines can cause serious injury. Only technicians familiar with this type of system should perform repairs. Before disconnecting fuel lines, sensors, or any other components between the high-pressure fuel pump and nozzles on engines with High Pressure Common Rail (HPCR) fuel system, wait a minimum of 15 minutes after engine is stopped.
OUO6075,00003F2 -19-06JUL06-1/3 |
|

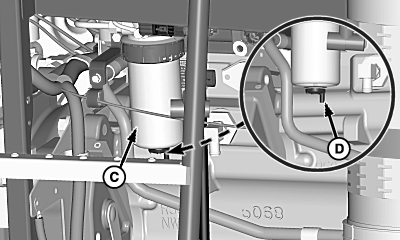

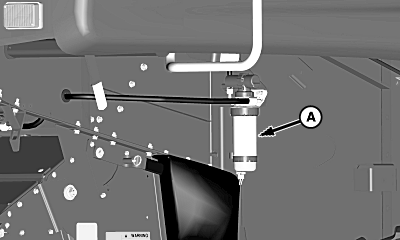

NOTE: Use a catch pan when draining fuel and when removing fuel filters. 5. Drain fuel contaminates and relieve pressure from primary fuel/water separator filter (A) by opening drain (B). 6. Drain fuel contaminates and relieve pressure from secondary fuel filter (C) by opening drain (D). NOTE: Additional fuel will drain from filter housings. 7. Close drain valves and remove fuel filters.
|
|
OUO6075,00003F2 -19-06JUL06-2/3 |
|

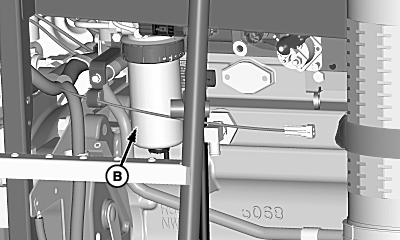

IMPORTANT: Do NOT prefill either fuel filter with fuel. NOTE: Lube filter seals with diesel fuel before installing. 8. Install replacement primary fuel/water separator filter (A) and secondary fuel filter (B). Tighten 3/4 turn after seal contacts filter housing. 9. Open fuel shut off at bottom of fuel tank to allow primary fuel/water separator filter to fill. 10. Turn key switch ON for 60 seconds to allow fuel pump to prime fuel system. 11. Start engine and run 3 to 5 minutes at low idle.
|
|
