Engine Belt-Routing

H85604

6.8 L Engine Belt Routings

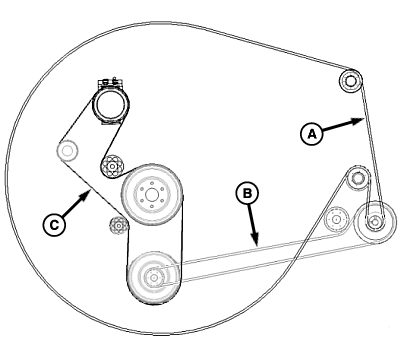

H82476

8.1 L Engine Belt Routings


A-Rotary Screen Drive Belt, Screen Side

B-Rotary Screen Drive Belt, Engine Side

C-Cooling Fan, Air Conditioner, Compressor Belt



OUO6075,00003F5 -19-16MAY06-1/1
