Engine Accessory/Fan Drive Belt-Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

1. Loosen nut (A) and remove rotary screen drive belt (B).


A-Nut
B-Rotary Screen Drive Belt

H82404

OUO6075,00003F6 -19-16MAY06-1/3

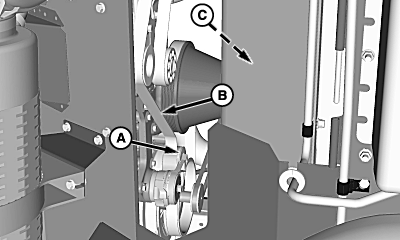

2. Use a breaker bar to relieve belt tension from tensioner arm (A).

3. Remove belt (B) and work belt over fan blades (C) to remove.

4. Install belt in reverser order.


A-Tensioner Arm
B-Belt
C-Fan Blades

H82405
H85942

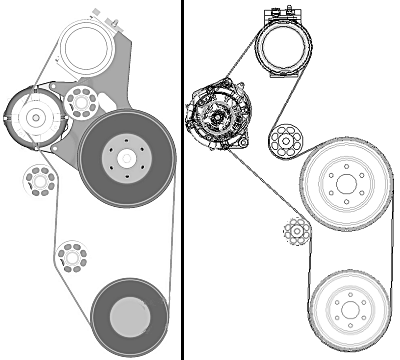

6.8 L Routing / 8.1 L Routing

OUO6075,00003F6 -19-16MAY06-2/3

5. Install belt (B) in reverse order.

6. Tighten nut (A) until gauge aligns with end of spring.


A-Nut
B-Belt

H82404
