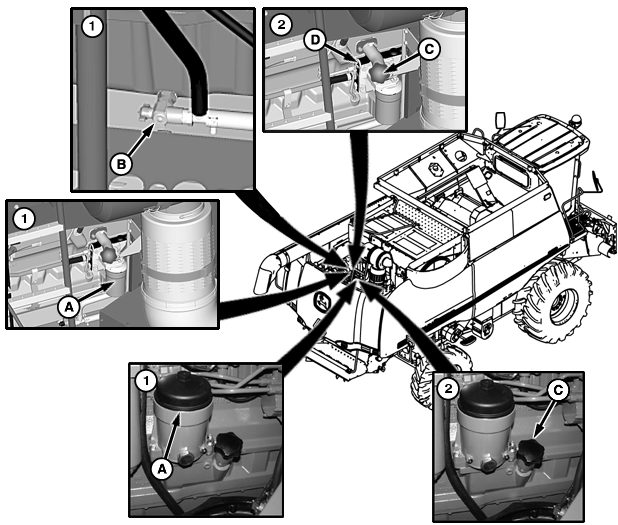

A-Oil Filter or Cap

B-Drain

C-Cap or Dipstick

D-Dipstick

IMPORTANT: Change oil every 100 hours if fuel is more than 0.5 % sulfur.

Fill crankcase with seasonal viscosity grade oil or TORQ-GARD SUPREME ™ (250 hours change interval). If using PLUS-50 ™ oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

Do not operate engine with oil level below low mark on dipstick.

1. 6. 8 L Engine: Engine Crank Case Oil Filter - Remove and replace oil filter (A). Open drain (B) to remove oil.

8. 1 L Engine: Engine Crank Case Filter Top Load Oil Filter - Remove cap (A) and replace filter. Install cap and tighten to specifications. Open drain (B) to remove oil.

Specification

8. 1 L Engine: Engine Crank Case Oil Filter - Remove cap (C) to fill and check after filling.

Engine Crank Case Oil Filter - Remove cap (C) to fill and check oil with dipstick (D) after filling.

TORQ-GARD SUPREME is a trademark of Deere & Company
PLUS-50 is a trademark of Deere & Company

OUO6075,00003F8 -19-14JUL06-1/1
