Every 250 Hours

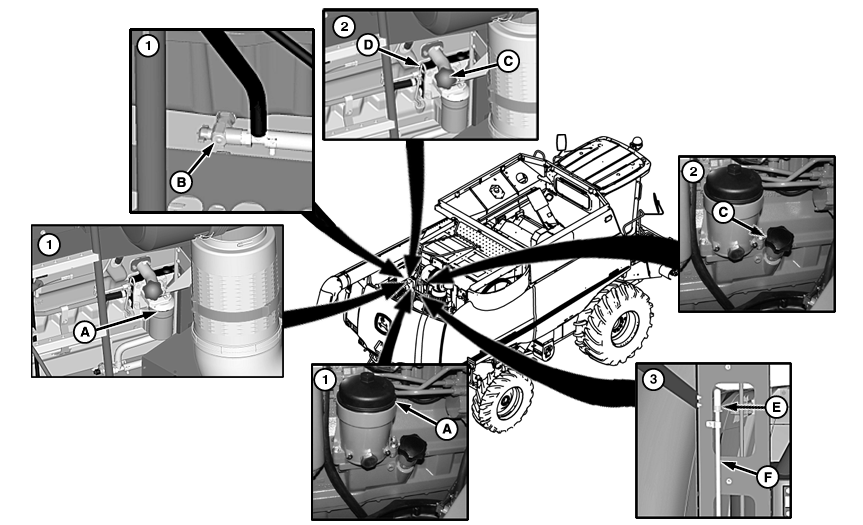

H85936


A-Oil Filter or Cap
B-Drain


C-Cap or Dipstick
D-Dipstick


E-Fuel Tank Breather


F-Hose

IMPORTANT: Change oil every 100 hours if fuel is more than 0.5 % sulfur.

Fill crankcase with seasonal viscosity grade oil or TORQ-GARD SUPREME ™ (250 hours change interval). If using PLUS-50 ™ oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

Do not operate engine with oil level below low mark on dipstick.

1. 6. 8 L Engine: Engine Crank Case Oil Filter - Remove and replace oil filter (A). Open drain (B) to remove oil.

8. 1 L Engine: Engine Crank Case Filter Top Load Oil Filter - Remove cap (A) and replace filter. Install cap and tighten to specifications. Open drain (B) to remove oil.

Specification

Top Load Cap -Torque 40 N·m (30 lb-ft)

TORQ-GARD SUPREME is a trademark of Deere & Company
PLUS-50 is a trademark of Deere & Company

OUO6075,00003F9 -19-16MAY06-1/2

2. 6. 8 L Engine: Engine Crank Case Oil Filter - Remove cap (C) to fill and check oil with dipstick (D) after filling.

8. 1 L Engine: Engine Crank Case Oil Filter - Remove cap (C) to fill and check after filling.

3. Fuel Tank Breather - Visually inspect fuel tank breather (E). Do not allow excessive amounts of chaff to collect of breather. Remove fuel tank breather from hose (F) and clean.

OUO6075,00003F9 -19-16MAY06-2/2
