1.

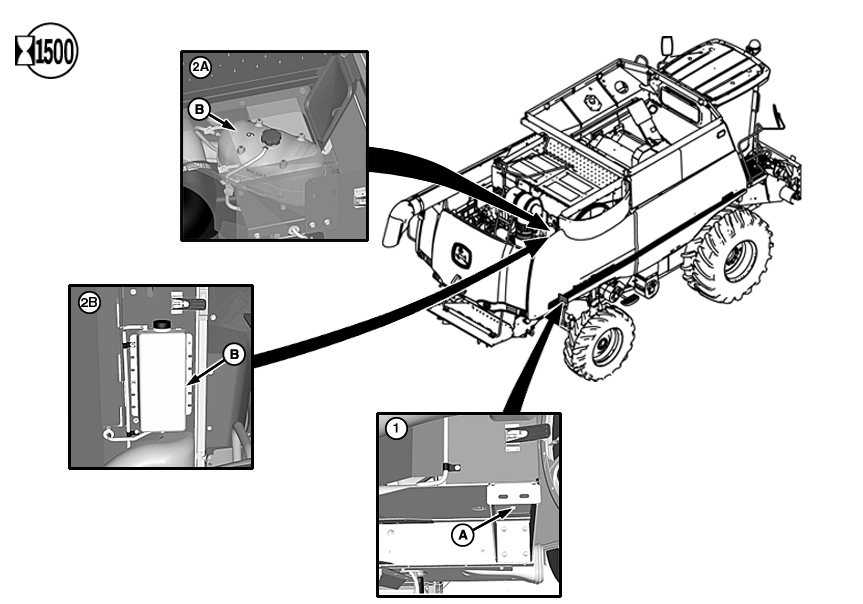

1. Radiator - Open drain (A) to remove coolant from radiator. Flush and refill with correct coolant and conditioner (see Flushing Cooling System in Engine Service section and Engine Coolant recommendations given in Fuels and Lubricants section).
2.
Surge Tank or Recovery Tank
a.
6. 8 L Engine:
Flush and refill with correct coolant and conditioner (see Flushing Cooling System in Engine Service section and Engine
|
Coolant recommendations given in Fuels and Lubricants section). Check engine coolant level in surge tank (B) with engine cold. Level must be up to "COLD" mark.
b.
8. 1 L Engine:
Flush and refill with correct coolant and conditioner (see Flushing Cooling System in Engine Service section and Engine Coolant recommendations given in Fuels and Lubricants section). Check engine coolant level in recovery tank (B) with engine cold. Level must be up to "COLD" mark.
|
